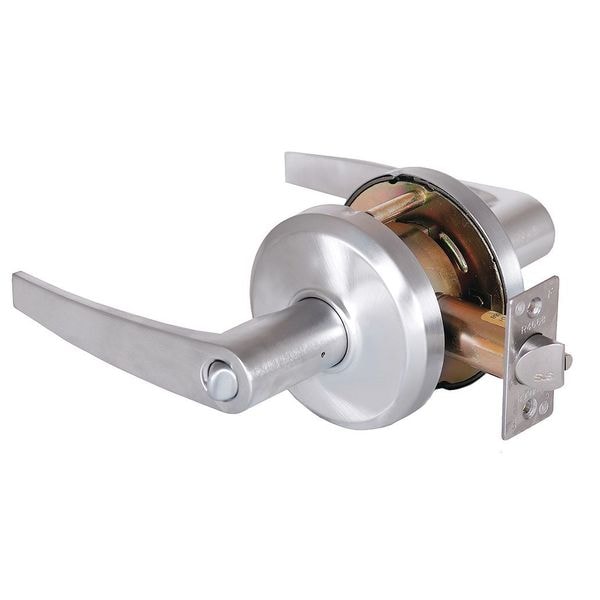

Door Lever Lockset, Satin Chrome
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Storeroom |
| Lockset Grade | Grade 2 |
| Style | CE Cylindrical |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | Schlage C |
| Key Type | Keyed Different |
| Number of Keys | 2 |
| Features | Easy Install, Non-Handed |
| Number of Pins | 6 |
| Key Material | Nickel Silver |
| Location Type | Commercial, Healthcare, Industrial, Multi-Family |
| Standards | ANSI A117.1, ANSI/BHMA A156.2, California State Reference Code (Formerly Title 19 - Fire Marshal) Hurricane Compliant - Miami DADA N.O.A, UL and cUL Listed |
| Ligature Resistant | No |
| Lockset Performance Strength | Standard Duty |
| ADA Compliant | Yes |
| Handle Material | Brass, Bronze, Steel |
| Strike Type | ANSI |
| Includes | Heavy Duty Torsion Springs |
| Cylinder Core Type | Small Format Interchangeable Core Cylinder |
| For Use With | various Door Types |
| Lockset Fire Rating | 3 hr |
| Item | Door Lockset |
| Strike Dim. | 4-7/8 in x 1-1/4 in |
| Series | QCL |
| Backset | 2-3/4 in |
| Voltage | Not Applicable |
| Visual Indicator Message | No Message |
| Mortise/Cylindrical | Cylindrical |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Thickness - Maximum | 2 in |
| Door Thickness - Minimum | 1-3/8 in |
| UL Fire Rating | UL10C, UL10B |
| Strike Plate Width | 1-1/4 in |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Strike Plate Height | 4-7/8 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Performance Grade | 2 |
| Locking/Unlocking Access - Outside | Keyway |
| Application | Commercial, Hospitals, Multiple Family Residential |
| Lockset Type | Mechanical |
| Lockset Style | QCL Slate |
| Fire Rating | 3 hr |
| ANSI Grade | 2 |
| Knob/Handle Material | Cast Zinc |
| Visual Indicator Location | Not Applicable |
| Hand Orientation | Non-Handed |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
