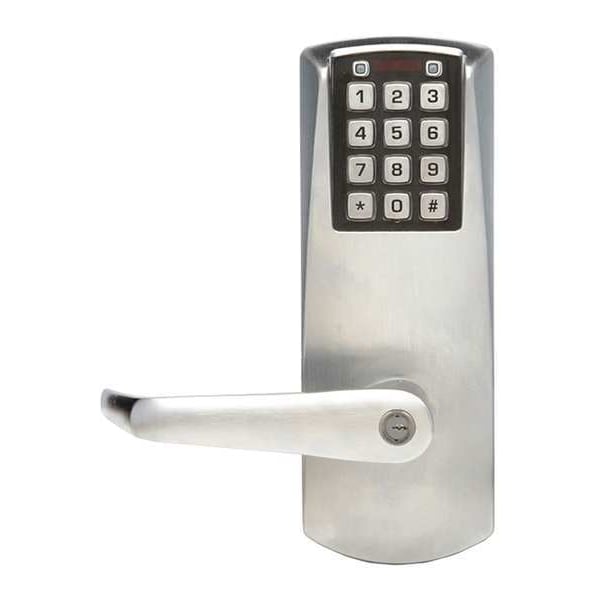

Electronic Locks, 2000, ExitTrim, 3-5/16inW
| Item | Electronic Keyless Lock |
|---|---|
| Handle Type | Lever |
| Function | Storeroom |
| Key Override Options | Schlage C Keyway |
| Hand | Nonhanded |
| Finish | Satin Chrome |
| Door Thickness | 1-3/4 in |
| Backset | 2 3/4 in |
| Electrical/Mechanical | Electrical |
| Product Type | Electronic Keyless Lock |
| Lockset Function | Entrance |
| Latch Length | 1/2 in |
| Outside Width | 3-5/16 in |
| Case Material | Solid Cast |
| Grade | 1 |
| Outside Depth | 3-3/16 in |
| Weather Resistant | Yes |
| Max. User Codes | 100 |
| Series | 2000 |
| Lock Material | Metal |
| Fire Rating | Yes |
| Number of Keys | 2 |
| Outside Height | 8-15/16 in |
| Network Interface | AL-DTM2 |
| Keypad Material | Solid Metal |
| Inside Width | 3-3/4 in |
| Mounting Style | Exit Trim |
| Inside Depth | 3-3/16 in |
| Operating Temp. Range | -31 to 130 deg F |
| Timed Entry Allowance | 2 to 20 sec |
| Max. Proximity Range | At Lock |
| Standards | ANSI/BHMA A156.13 Grade 1, ANSI/BHMA A156.2 Grade 1, ANSI/BHMA A156.25 Grade 1, ANSI/BHMA A156.3 Grade 1 |
| Inside Height | 11 in |
| ADA Compliant | Yes |
| Latch Front Size | 1-1/8 in X 2 in |
| Event Audit Trail | 1,000 |
| For Use With | Commercial Doors |
| Access Method | Keypad |
| Power Source | Not Applicable |
| IP Rating | 55 |
| Location Type | Commercial |
| Battery Life | Not Applicable |
| Overall Width | 3-5/16 in |
| Overall Depth | 3-3/16 in |
| Overall Height | 8-15/16 in |
| Door Thickness - Maximum | 2-1/4 in |
| Cylinder Core Type | Conventional Core Cylinder |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Lockset Type | Electrical |
| Lockset Handle Type | Lever |
| UL Fire Rating | UL10C |
| User Codes - Maximum | 100 |
| Includes Hardware | Hardware Included |
| Latch Front Length | 2-1/8 in |
| Includes Core | Core Not Included |
| Temperature - Maximum | 151 deg F |
| Strike Type | ASA, T-Strike |
| Latch Front Width | 1-1/8 in |
| Operation Type | Push Button |
| ANSI Grade | 1 |
| Temperature - Minimum | -31 deg F |
| Lockset Material | Solid Cast |
| Event Audit Trails | 1,000 |
| Hand Orientation | Non-Handed |
| Door Thickness - Minimum | 1 3/4 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
