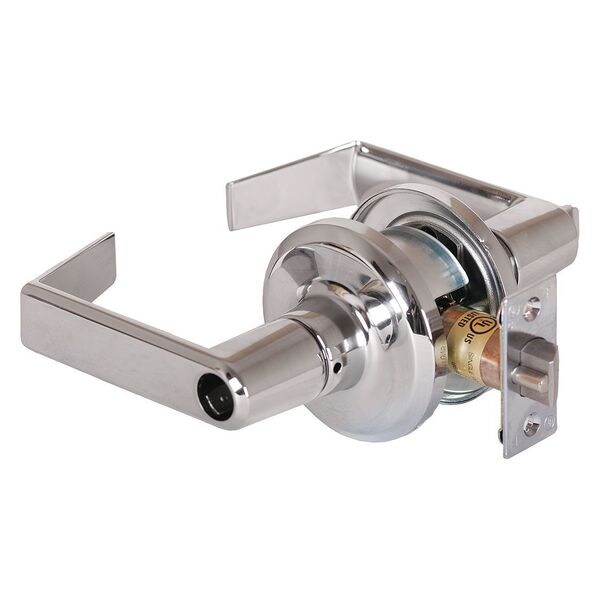

Lever Lockset, Mechanical, Entrance, Grd. 2
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Entrance |
| Lockset Grade | Grade 2 |
| Style | QTL250 Sierra |
| Required Door Thickness | 1-3/8 in to 1-3/4 in |
| Lockset Finish | Bright Chrome |
| Keyway Type | Schlage C |
| Key Type | Keyed Different |
| Location Type | Multi-Family, Hotel, Retail, Apartment Complex, Government Facility, Office Building, Religious |
| Strike Dim. | 1-1/8 in x 2-1/4 in |
| Ligature Resistant | No |
| Strike Type | ASA |
| Lockset Performance Strength | Heavy Duty |
| Series | QTL200 |
| Standards | ANSI A117.1, ANSI/BHMA A156.2, UL and cUL Listed |
| For Use With | various Door Types |
| Number of Pins | 6 |
| Key Material | Nickel Silver |
| Cylinder Core Type | Small Format Interchangeable Core Cylinder |
| ADA Compliant | Yes |
| Backset | 2-3/8 in |
| Features | Limited Lifetime Mechanical Warranty |
| Includes | Heavy Duty Torsion Springs |
| Voltage | Not Applicable |
| Handle Material | Zinc |
| Lockset Fire Rating | 3 hr |
| Number of Keys | 2 |
| Item | Door Lockset |
| Fire Rated | 3 hr. |
| Grade | 2 |
| Finish | Bright Chrome |
| Keying | Keyed Different |
| Visual Indicator Message | No Message |
| Mortise/Cylindrical | Cylindrical |
| Lockset Function ANSI Code | F82 |
| Door Thickness - Minimum | 1-3/8 in |
| Hand Orientation | Non-Handed |
| Lockset Type | Mechanical |
| Strike Plate Height | 2-1/4 in |
| Fire Rating | 3 hr |
| Lockset Style | QTL Sierra |
| ANSI/BHMA Finish | Bright Chromium-Plated |
| Ligature-Resistant | Not Ligature-Resistant |
| Knob/Handle Material | Cast Zinc |
| Strike Plate Width | 1-1/8 in |
| Visual Indicator Location | Not Applicable |
| UL Fire Rating | UL10C |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Application | Commercial, Multiple Family Residential |
| ANSI Grade | 2 |
| Door Thickness - Maximum | 1-3/4 in |
| Performance Grade | 2 |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
