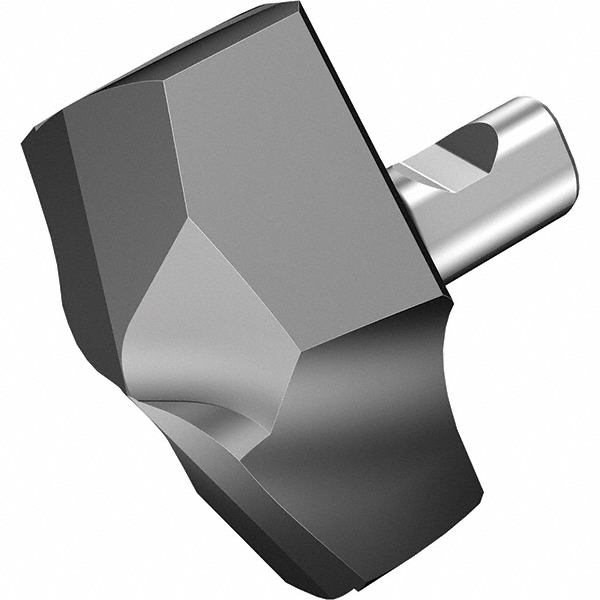

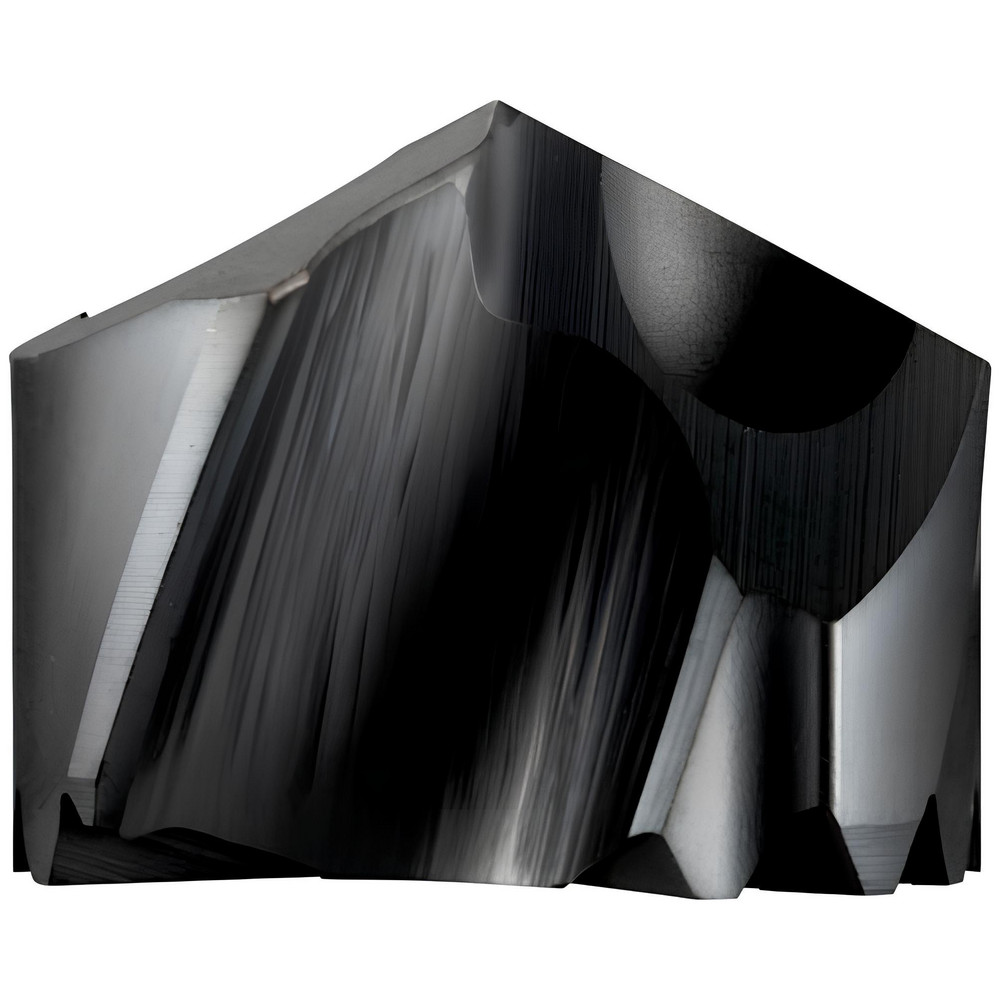

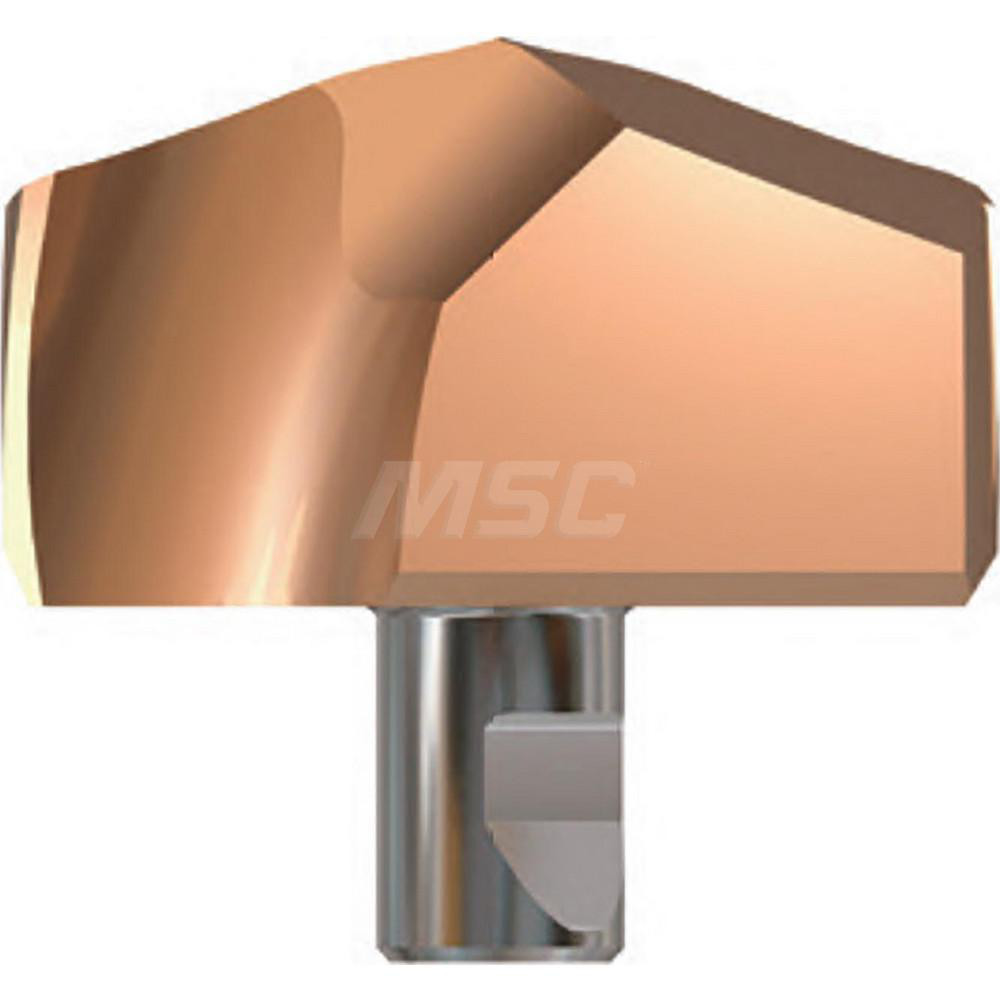

TiAlN Finish, Through Coolant

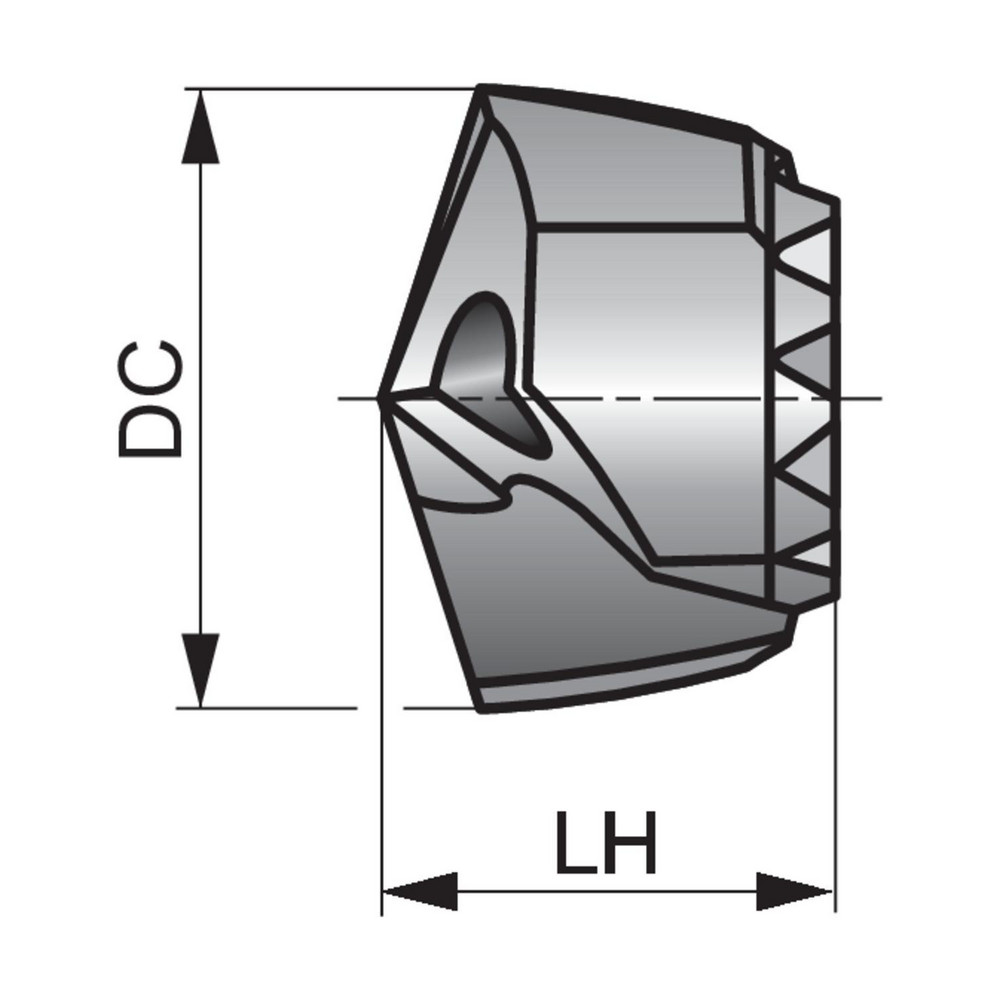

| Cutting Diameter (Inch) | 5/8 |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Cutting Diameter (mm) | 15.88 |
| Tip Material | Solid Carbide |
| Material Grade | P1; S4; P2; M1; K1; M4; K4; S1 |
| Series | R960 |
| Coating Process | PVD |
| Functional Length (Decimal Inch) | 0.2591 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Standards | ANSI |
| Height (Decimal Inch) | 0.457 |
| Height (mm) | 7.00 |
| Overall Length/Projection (Decimal Inch) | 0.2591 |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | R9605/8 |
| Coolant Through | Yes |
| Flute Length (mm) | 7.00 |
| Point Type | Four Facet Point |
| Spiral Type | Regular Spiral |
| Style | R960 |
| UNSPSC Code | 23242105 |

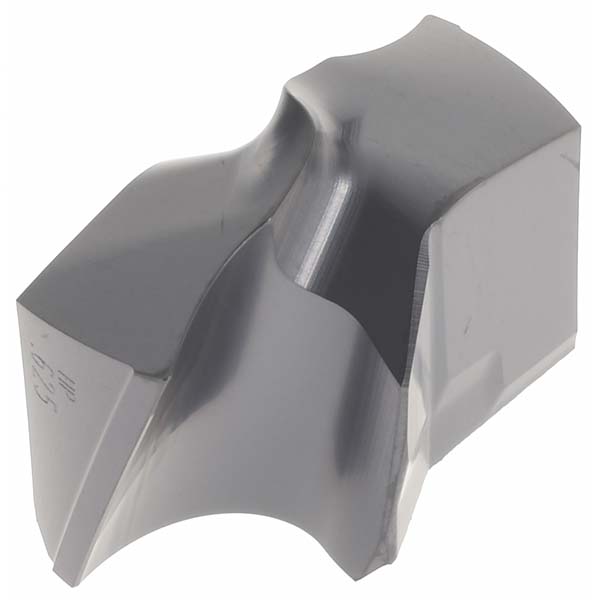

| Applications | High-performance replaceable drill head HYDRA M; diameter 0.6250" (5/8) according to DORMER standard with 140° modified 4-facet split point; solid carbide with Ti-phon coating for drilling stainless steel in combination with HYDRA body size 41/64" or 16mm; H853 for up to 3xD; H855 for up to 5xD or H858 for up to 8xD |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 45483781 |
