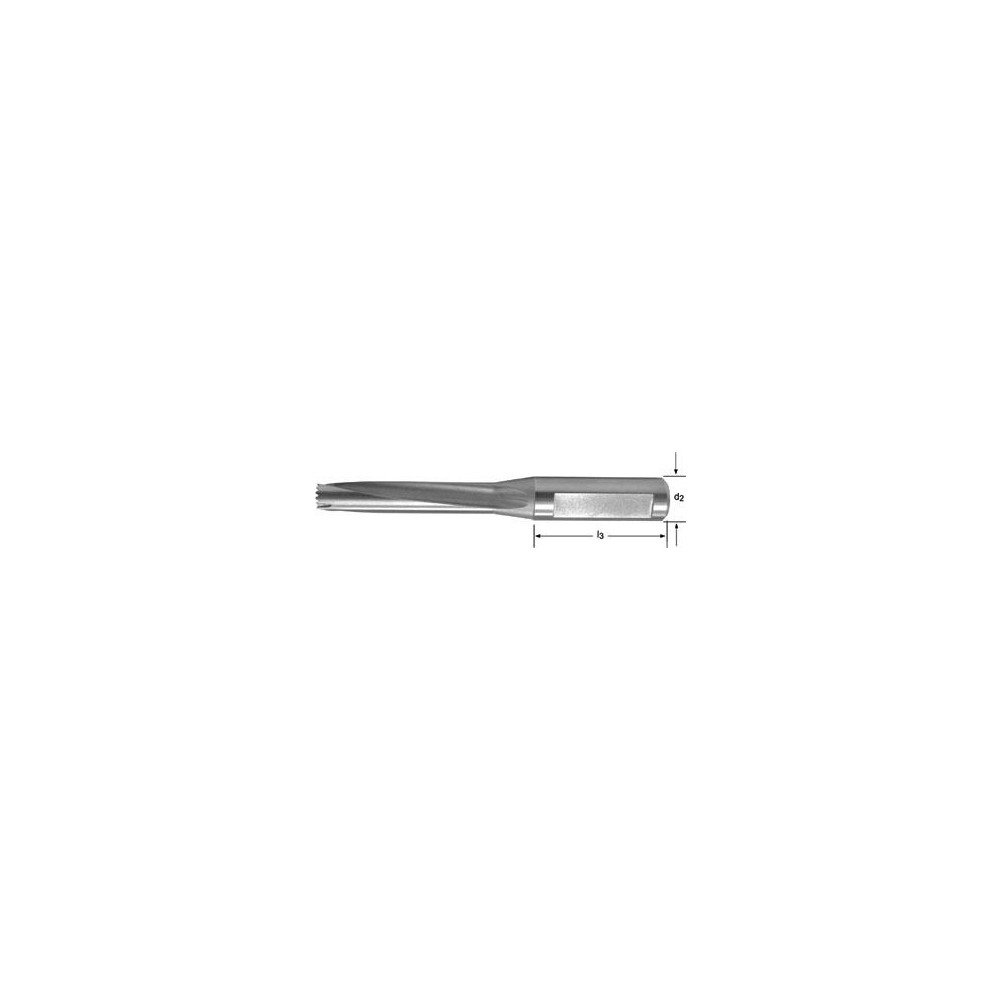

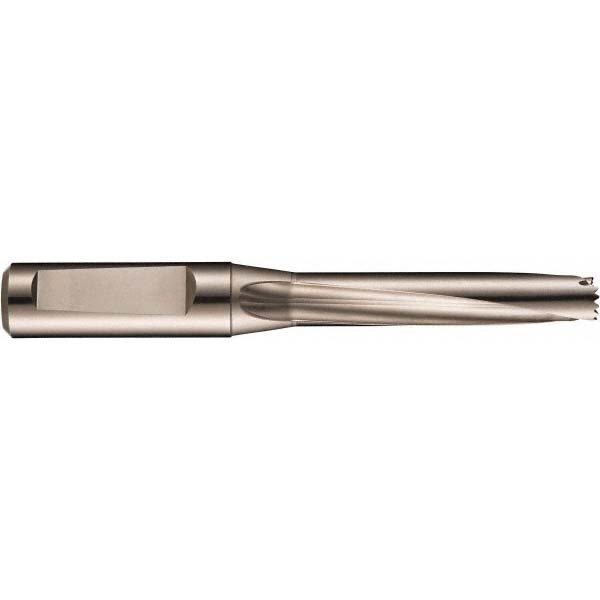

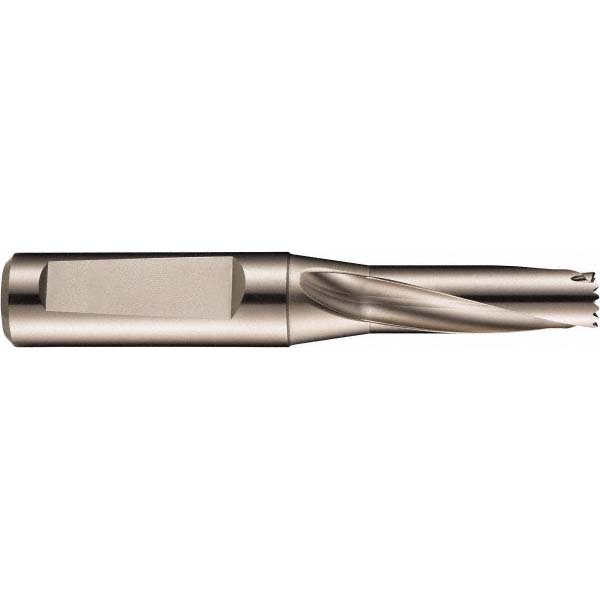

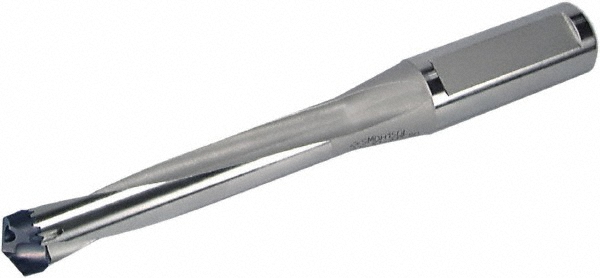

191.5 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.7323 |
|---|---|
| Minimum Drill Diameter (mm) | 18.60 |
| Maximum Drill Diameter (mm) | 19.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.7677 |
| Drill Depth by Diameter Ratio | 5xD |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 25.40 |
| Overall Length (mm) | 191.5 |
| Overall Length (Decimal Inch) | 7.5451 |
| Series | H855 |
| Toolholder Style | H855 |
| Flute Length (mm) | 108.50 |
| Flute Length (Decimal Inch) | 4.2749 |
| Body Length (Decimal Inch) | 5.3387 |
| Body Length (mm) | 135.50 |
| Shank Length (Decimal Inch) | 2.2064 |
| Shank Length (mm) | 56.00 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Japan |
| MSC Number | MSC# 02895167 |
