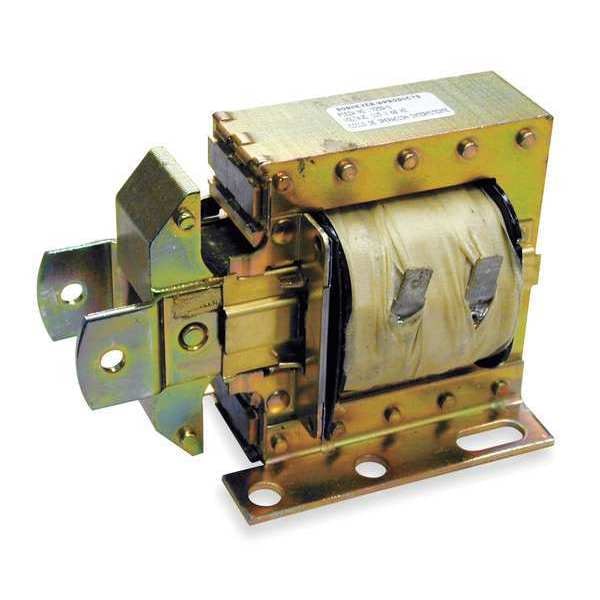

Solenoid, 1/4 - 1-1/4 in, Intermittent
| Item | Solenoid |
|---|---|
| Solenoid Type | Laundry Equipment |
| Stroke Range | 1/4 to 1-1/4 in |
| Pull Force Range | 240 to 512 oz |
| Amps @ Max. Stroke | 1.1 A |
| Terminals | 1/4 in Spade |
| Coil Volts | 120 V AC |
| Depth | 2-15/16 in |
| Length | 2-63/64 in |
| Duty Cycle | Intermittent |
| Seated Watts | 40 W |
| Pull @ 3/8 In. Stroke | 288 oz |
| Pull @ 1/16 In. Stroke | 512 oz |
| Seated Amps | 1.1 A |
| Pull @ 1/4 In. Stroke | 320 oz |
| Pull @ 1/2 In. Stroke | 312 oz |
| Mounting Holes | 2 in |
| Coil Resistance | 4.1 ohms |
| Max. On Time | 3 min |
| Pull @ 1/8 In. Stroke | 448 oz |
| Width | 2-3/8 in |
| Pull @ 1-1/4 In. Stroke | 240 oz |
| Length (Straight Wireway) | 2-63/64 in |
| Package Quantity | 1 |
