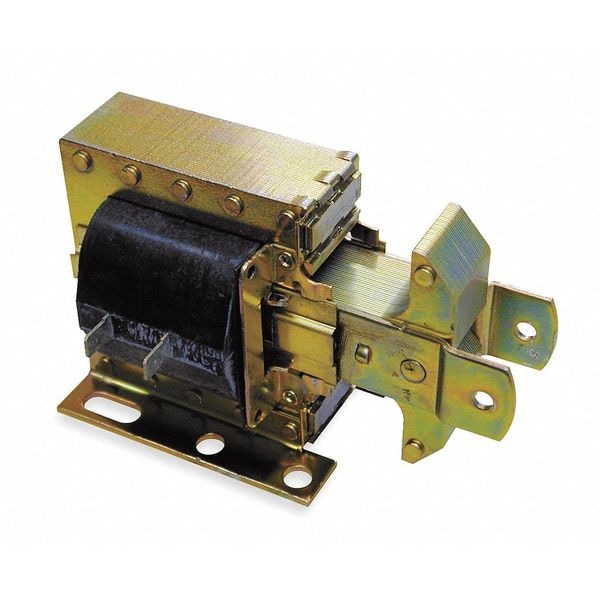

Solenoid, Laminatd, 1/8 - 1-1/4in, Continus
| Item | Solenoid |
|---|---|
| Solenoid Type | Laminated |
| Stroke Range | 1/8 to 1-1/4 in |
| Pull Force Range | 192 to 256 oz |
| Amps @ Max. Stroke | 6.5 A |
| Terminals | Solder Lug Coil |
| Coil Volts | 240 V AC |
| Depth | 2-15/16 in |
| Length | 3 in |
| Duty Cycle | Continuous |
| Pull @ 1/4 In. Stroke | 4 oz |
| Mounting Holes | 2 x 1-7/8 in |
| Seated Amps | 0.33 A |
| Width | 2-3/8 in |
| Pull @ 1/8 In. Stroke | 10 oz |
| Coil Resistance | 26 ohms |
| Seated Watts | 23.5 W |
| Pull @ 1/2 In. Stroke | 1 oz |
| Gravity Value | 12.64 oz |
| Pull @ 3/8 In. Stroke | 2 oz |
| Length (Straight Wireway) | 3 in |
| Package Quantity | 1 |
