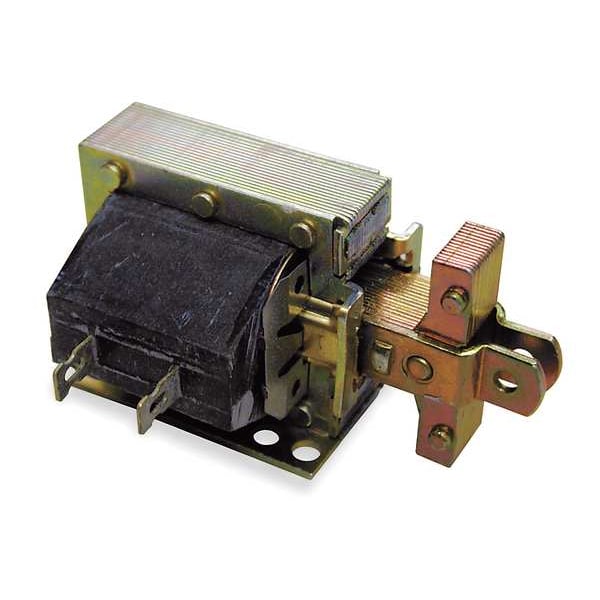

Solenoid, Laminated, 1/8 - 3/4 in, Continus
| Item | Solenoid |
|---|---|
| Solenoid Type | Laminated |
| Stroke Range | 1/8 to 3/4 in |
| Pull Force Range | 16 to 80 oz |
| Amps @ Max. Stroke | 0.65 A |
| Terminals | Solder Lug Coil |
| Coil Volts | 240 V AC |
| Depth | 1-7/16 in |
| Length | 1-5/8 in |
| Duty Cycle | Continuous |
| Pull @ 1/2 In. Stroke | 5.9 oz |
| Width | 1-3/16 in |
| Gravity Value | 1.76 oz |
| Coil Resistance | 354 ohms |
| Pull @ 1/8 In. Stroke | 35 oz |
| Pull @ 1/16 In. Stroke | 58 oz |
| Pull @ 5/8 In. Stroke | 3.8 oz |
| Seated Watts | 10W |
| Seated Amps | 0.15 A |
| Pull @ 1/4 In. Stroke | 16 oz |
| Pull @ 3/8 In. Stroke | 7.5 oz |
| Mounting Holes | 1-3/8 x 7/8 in |
| Length (Straight Wireway) | 1-5/8 in |
| Package Quantity | 1 |
