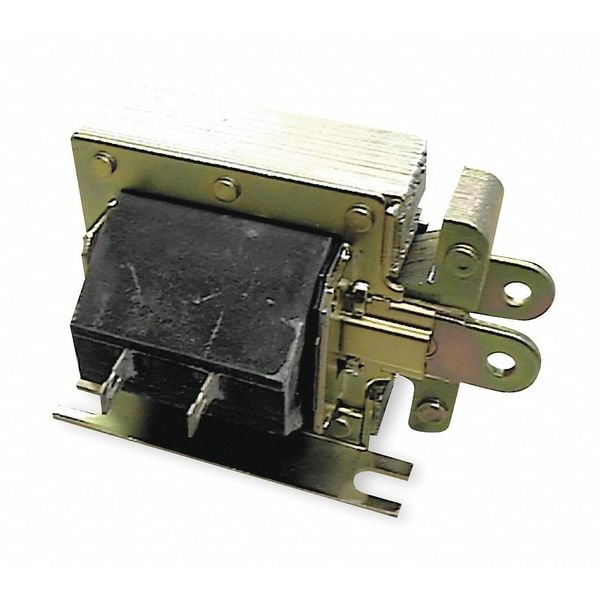

Solenoid, Laminated, Continuous Duty, 120V AC, 1/8 in to 1 in Stroke Range, 2-1/2 in L, 1-13/16 in W
| Item | Solenoid |
|---|---|
| Solenoid Type | Laminated |
| Stroke Range | 1/8 to 1 in |
| Pull Force Range | 64 to 128 oz |
| Amps @ Max. Stroke | 4.9 A |
| Terminals | Solder Lug Coil |
| Coil Volts | 120 V AC |
| Depth | 2-1/16 in |
| Length | 2-1/2 in |
| Duty Cycle | Continuous |
| Gravity Value | 4.32 oz |
| Seated Watts | 17.9 W |
| Pull @ 3/8 In. Stroke | 1 oz |
| Pull @ 1/8 In. Stroke | 3 oz |
| Width | 1-13/16 in |
| Mounting Holes | 2 x 1-3/8 in |
| Seated Amps | 0.43 A |
| Pull @ 1/4 In. Stroke | 2 oz |
| Coil Resistance | 20.5 ohms |
| Length (Straight Wireway) | 2-1/2 in |
| Package Quantity | 1 |
