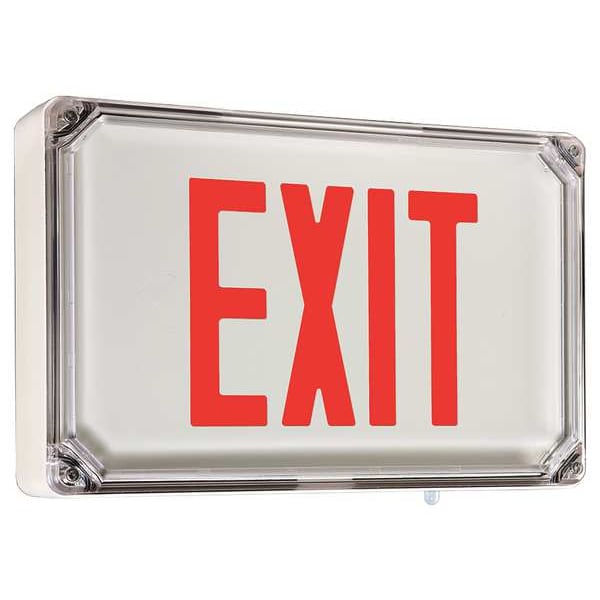

Exit Sign, White, 2 Face(s), LED, Universal Mount, Nickel Cadmium
| Item | Exit Sign |
|---|---|
| Width | 14-3/4 in |
| Height | 10-1/4 in |
| Voltage | 120/277 V AC |
| Housing Material | Aluminum |
| Number of Faces | 2 |
| Mounting | Universal |
| Lighting Technology | LED |
| Emergency Illumination Time | 90 min |
| Directional Indicators | Universal Field Selectable Chevrons |
| Housing Color | White |
| Battery Chemistry | Nickel Cadmium |
| Letter Color | Red |
| Fixture Wattage | 3.1 W |
| Housing Color - Emergency Lighting and Exit Signs | White |
| Background Color | White |
| Battery Type | Nickel Cadmium |
| Depth | 3-1/2 in |
| Emergency Back Up Battery | Yes |
| Letter Size | 6 in High |
| Operating Temp. Range | -30 to 50 deg C |
| Lamp Head Light Source - Emergency Lighting and Exit Signs | No Heads |
| Directional Indicators - Emergency Lighting and Exit Signs | Universal Field Selectable Chevrons |
| Number of Lamp Heads | 0 |
| Housing Material - Emergency Lighting and Exit Signs | Aluminum |
| Lamp Type | LED |
| Standards | NEMA 4X, UL 924 |
| Item - Emergency Lighting and Exit Signs | Exit Sign |
| Warranty | 5 yr |
| Voltage - Emergency Lighting and Exit Signs | 120/277 |
| Bulb Technology | LED |
| Includes | Mounting Hardware |
| IP Rating | 66 |
| Diagnostic Testing Function | Self Diagnostics |
| Lamp Wattage | 3.1 W |
| Text Size | 3/4 in Stroke x 6 in High |
| Overall Height | 9-3/8 in |
| Text Height | 6 in |
| CA Title 20 Compliant | Yes |
| Manufacturers Warranty Length | 5 yr |
| Overall Width | 14-3/4 in |
| Maximum Operating Temperature | 122 deg F |
| Environmental Rating | Wet Location Rated |
| Compliance Type | None |
| Emergency Battery Backup | Yes |
| Text Stroke Width | 3/4 in |
| Series | SEWL |
| Text Color | Red |
| Self Diagnostics | Yes |
| NEMA Rating | NEMA 4X |
| Minimum Operating Temperature | -22 deg F |
| Application | Washdown |
| Overall Depth | 3-1/8 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
