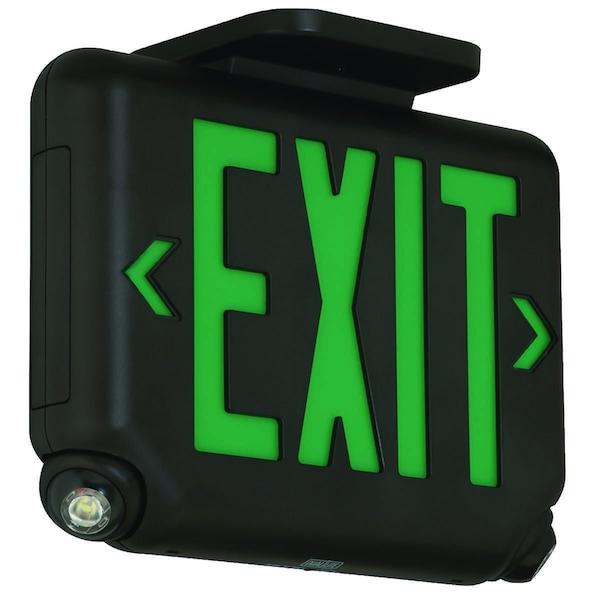

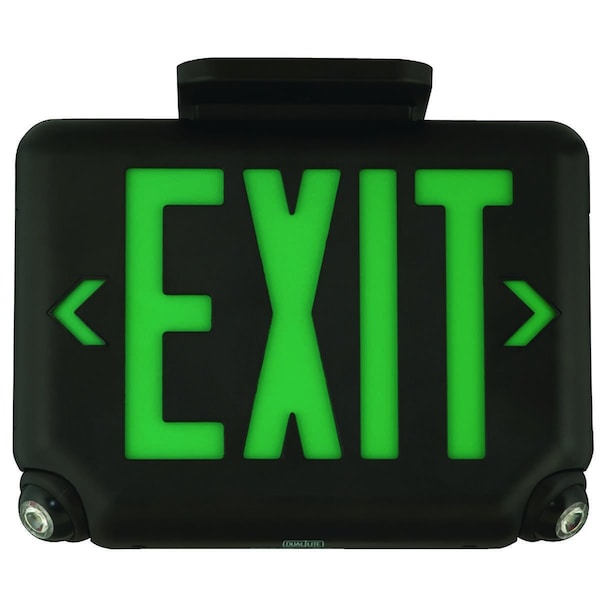

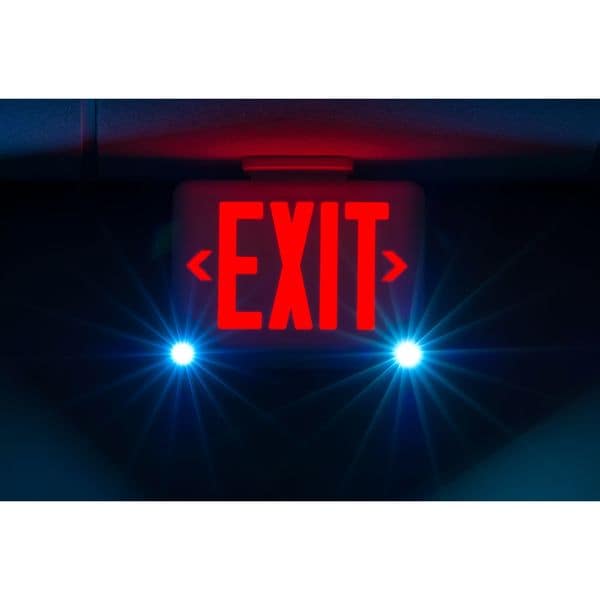

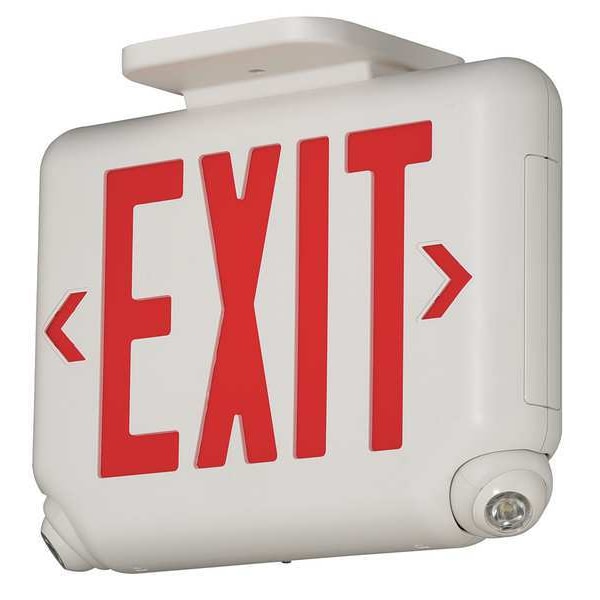

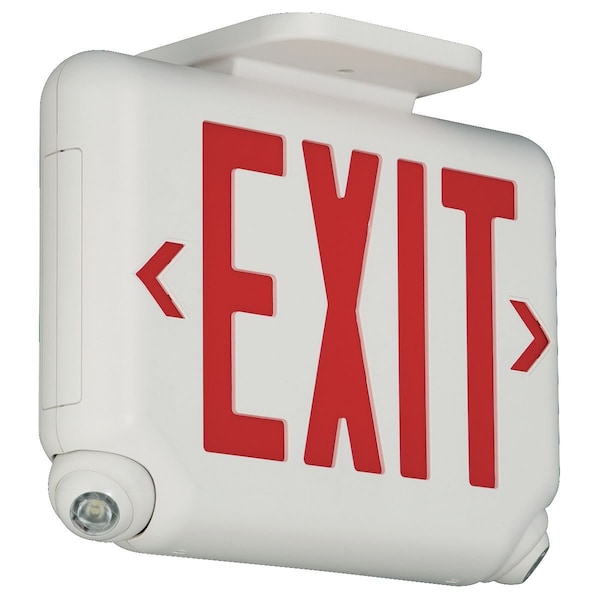

Exit Sign with Emergency Lights, White, 1 or 2 Face(s), LED, Universal Mount
| Item | Exit Sign with Emergency Lights |
|---|---|
| Width | 12 in |
| Height | 9 in |
| Voltage | 120/277V AC |
| Housing Material | Plastic |
| Number of Faces | 1 or 2 |
| Mounting | Universal |
| Lighting Technology | LED |
| Emergency Illumination Time | 90 min |
| Directional Indicators | Universal Field Selectable Chevrons |
| Housing Color | White |
| Battery Chemistry | Lithium Iron Phosphate |
| Letter Color | Red |
| Directional Indicators - Emergency Lighting and Exit Signs | Universal Field Selectable Chevrons |

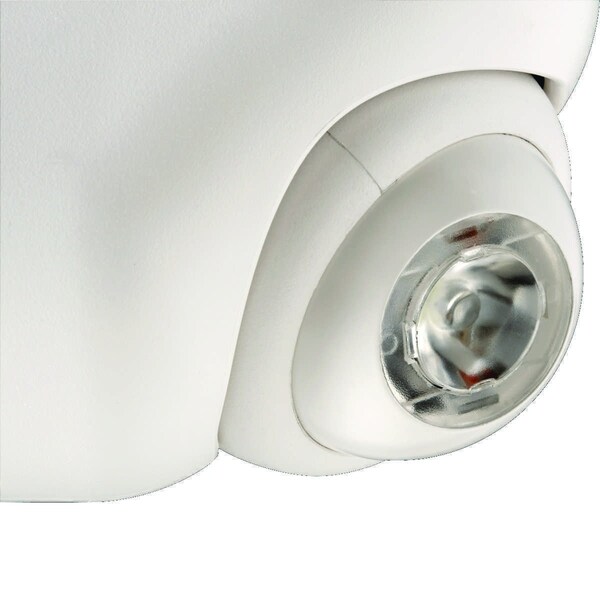

| Number of Lamp Heads | 2 |
| Voltage - Emergency Lighting and Exit Signs | 120/277 |
| Housing Material - Emergency Lighting and Exit Signs | Plastic |
| Lamp Head Light Source - Emergency Lighting and Exit Signs | LED |
| Letter Size | 6 in |
| Fixture Wattage | 1.7 W |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Operating Temp. Range | 20 to 30 deg C |
| Depth | 2-35/64 in |
| Item - Emergency Lighting and Exit Signs | Exit Sign with Emergency Lights |
| Emergency Back Up Battery | Yes |
| Head Lamps Adjustable | Yes |
| Includes | Manual |
| Optional Remote Head | 26UX07, 26UX08, 26UX09, 32WU47, 32WU48 |
| Housing Color - Emergency Lighting and Exit Signs | White |
| Standards | NFPA 101, NFPA 70, UL 924 |
| Warranty | 3 yr |
| Background Color | White |
| Housing Finish | Textured |
| Manufacturers Warranty Length | 3 yr |
| Lamp Head Location | Bottom |
| Series | EVC |
| Overall Width | 12 in |
| Number of Bulbs | 2 |
| Compatible Remote Head | 26UX07, 26UX08, 26UX09, 32WU47, 32WU48 |
| Recommended Single Fixture Spacing | 10 ft |
| Lamp Head Shape | Round |
| CA Title 20 Compliant | Yes |
| Application | Commercial Indoor |
| Overall Depth | 2-1/2 in |
| Compliance Type | None |
| Remote Capacity | 1 W |
| Battery Recharge Time | 24 hr |
| Maximum Operating Temperature | 30 deg C |
| Overall Height | 9 in |
| Lamp Head Light Source | LED |
| Lamp Wattage | 2.4 W |
| Text Height | 6 in |
| Text Size | 6 in High |
| Emergency Battery Backup | Yes |
| Self Diagnostics | No |
| Battery Voltage | 6.4 V DC |
| Remote Capable | Yes |
| Recommended Mounting Height | 7 ft 6 in |
| Minimum Operating Temperature | 20 deg C |
| Text Color | Red |
| Emergency Wattage | 1.65 W |
| Diagnostic Testing Function | Test Button |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
