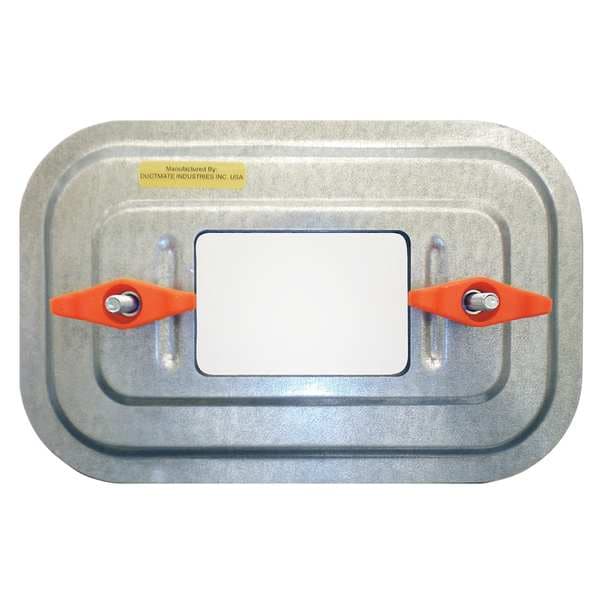

Observation Access Door, 11 In. W, 7 In. H
| Door Height | 6 in |
|---|---|
| Door Width | 10 in |
| Material | Steel |
| Rough Opening Height | 6 in |
| Rough Opening Width | 10 in |
| Finish | Galvanized |
| Item | Duct Access Door |
| Hinges | None |
| Shape | Rectangular |
| Includes | Self-Adhesive Template |
| Latch | Thumbscrews |
| Standards | ASTM D746, UL 94 HB, UL 94 HF 1 |
| Temp. Range | 200 Degrees max |
| Maximum Pressure Rating | 10 in wc |
| For Media Type | Dust |
| Maximum Temperature Rating | Standard Temperature |
| Observation Port Width | 4 in |
| Door Thickness | 7/8 in |
| Observation Port Height | 2-1/8 in |
| Material Thickness | 22 ga |
| Latch Type | Thumbscrews |
| Insulation Material | Not Applicable |
| Fire Rating | Not Rated |
| For Nominal Duct Diameter | Not Applicable |
| For Duct Shape | Rectangular |
| Observation Port Material | Steel |
| Door Shape | Rectangular |
| Material Fabrication | Stamped |
| Hinge Style | None |
| Seal Material | Not Applicable |
| Number of Mounting Stud | 2 |
| Minimum Temperature Rating | -20 deg F |
| Product Type | Access Door |
| Mounting Stud Length | 1-1/2 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
