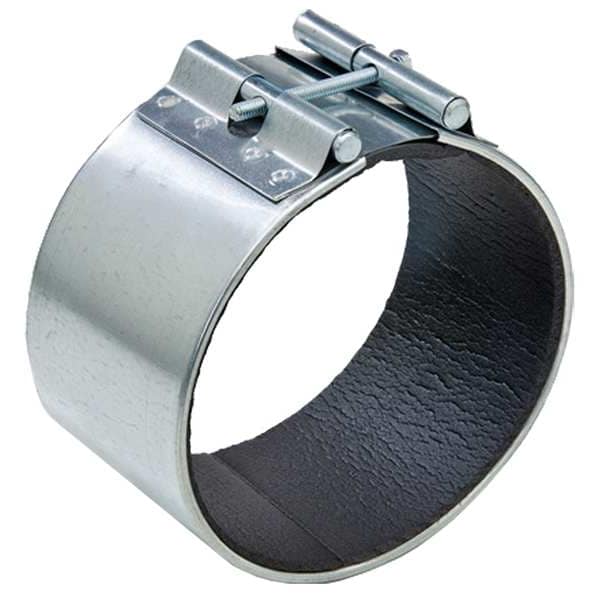

Conector redondo para tubo de 5 pulgadas de diámetro, fabricado en metal calibre 24, con un ancho de 5 pulgadas, una longitud de 3-1/2 pulgadas y una altura de 5 pulgadas.
| Duct Fitting Duct Size | 5" |
|---|---|
| Width | 5 in |
| For Use With | Round Exhaust HVAC Metal And Flex Duct |
| Gauge | 24 ga |
| Height | 5 in |
| Construction Material | Metal |
| Inlet Diameter | 5 in |
| Length | 3-1/2 in |
| Coating | Galvanized |
| Outlet Diameter | 5 in |
| Pressure Rating | 30 in W.G |
| Item | Connector Sleeve |
| Damper Shape | Round |
| Duct Fitting Diameter | 5 in |
| Duct Fitting Length | 3-1/2 in |
| Special Features | Self Sealing, High Pressure, Adjustable, No Fasteners |
| Standards | ASTM, SMACNA |
| Duct Fitting Material | Polyethylene, Steel |
| Duct Fitting Item | Connector Sleeve |
| Material | Steel |
| Series | QS |
| Overall Width | 5 in |
| Overall Height | 5 in |
| Color | Silver |
| Application | Commercial, Residential |
| Overall Length | 3-1/2 in |
| Type | Connector Sleeve |
| Finish | Galvanized |
| Gas Appliance Category | Category I, Category II, Category III, Category IV |
| Fabric Material | Neoprene |
| Product Type | Connector Sleeve |
| For Duct Shape | Round |
| Shape | Straight |
| Weight | 0.93 lb |
| Minimum Pressure Rating | 5 in wc |
| For Nominal Duct Diameter | 5 in |
| Connection Type | Single Bolt |
| Material Thickness | 24 ga |
| Fold Type | Not Applicable |
| Maximum Temperature Rating | 250 deg F |
| Duct Compatibility | Round Spiral |
| Maximum Pressure Rating | 30 in wc |
| Seal Material | Polyethylene |
| Maximum Airflow | Not Applicable |
| Inside Diameter | 5 in |
| Package Quantity | 1 |
