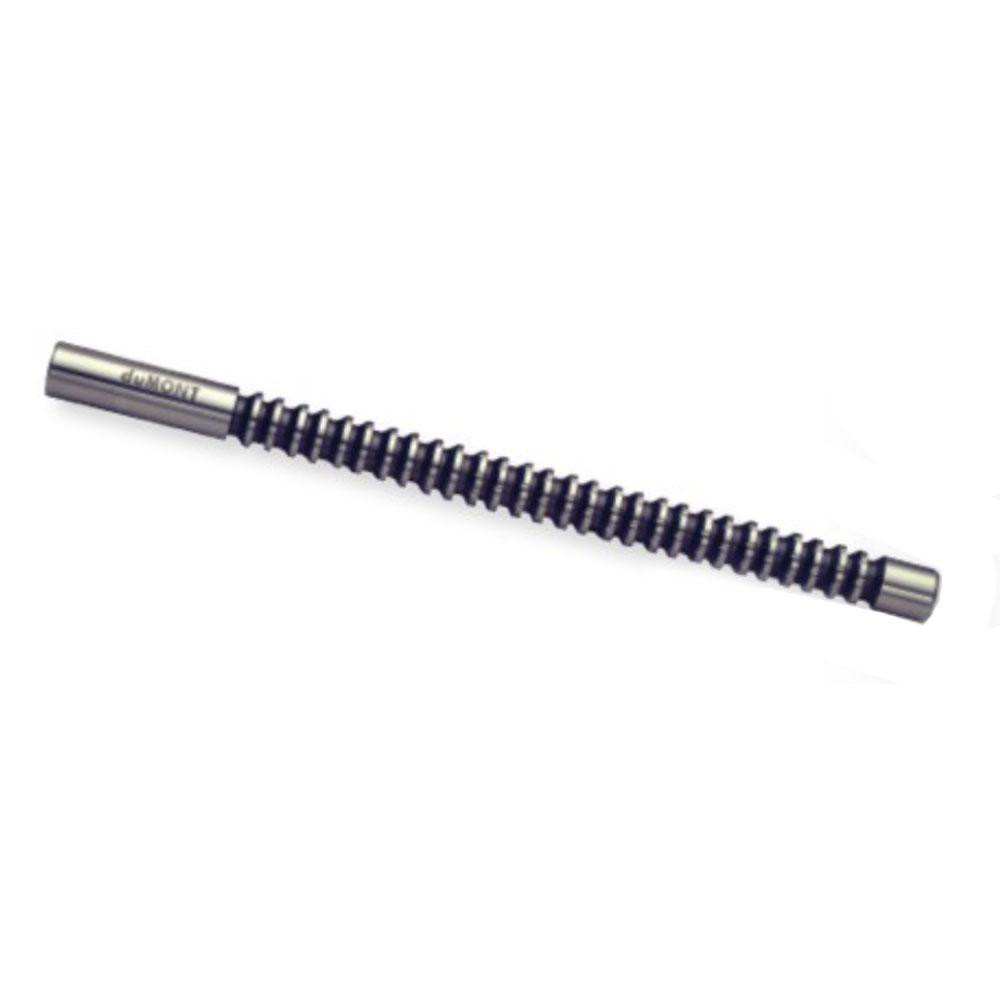

10" OAL, 4,970 Lb for Max Length of Cut, High Speed Steel
| Diameter (Inch, Fraction) | 1 |
|---|---|
| Pilot Hole Diameter (Decimal Inch) | 0.9844 |
| Minimum Length of Cut (Inch) | 5/8 |
| Maximum Length of Cut (Inch) | 1-3/4 |
| Overall Length (Inch) | 10 |
| Pressure Required for Maximum Length of Cut (Lb.) | 4970 |
| Minimum Tolerance (Decimal Inch) | 1.0005 |
| Maximum Tolerance (Decimal Inch) | 1.0015 |
| Broach Material | High Speed Steel |
| UNSPSC Code | 23241602 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 94539335 |
