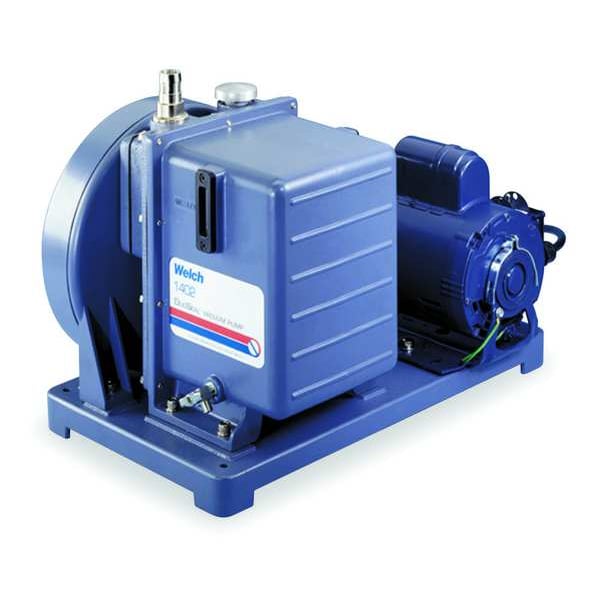

Vacuum Pump, 1 HP, 10.6 cfm, 115/230V
| Item | Vacuum Pump |
|---|---|
| HP | 1 hp |
| Voltage | 115/230V AC |
| Phase | 1 |
| Weight | 156 lb |
| Amps AC | 11.0/5.5 |
| Displacement | 10.6 cfm |
| NPT Inlet | 1 in |
| Overall Length | 19-1/4 in |
| Finish | Paint |
| Ballast | Gas, Inhibits Condensation Inside Pump |
| Hz | 60 |
| Overall Height | 15.37 in |
| Application | Chamber Evacuation, Degassing, Freeze Drying, Light Bulb, Neon Sign Manufacturing, Picture Tube Evacuation, Potting, Rice Porosity Test, Vacuum Drying |
| Oil Capacity | 80 fl oz |
| Includes | Oil |
| Valve Type | Drain |
| RPM | 525 RPM |
| Ultimate Pressure Torr | 1 x 10-4 |
| Outlet Size | 13/16 in NW |
| Tube Inside Dia. | 13/16 in |
| Overall Width | 14.12 in |
| Filter | Intake, Screens Reduce Possibility of Foreign Material Entering Pump |
| Maximum Vacuum | 0.0001 Torr |
| Filter Type | Screens |
| Runs Dry | No |
| Outlet Type | NW |
| Maximum Viscosity | 339 SUS |
| Thermal Protection | Reset |
| Fluid Compatibility | Oil |
| Maximum Speed | 525 RPM |
| Maximum Discharge Pressure | 0 mbar |
| Inlet Size | 13/16 in NPT |
| Inlet Type | NPT |
| Frequency | 50 Hz |
| Current Rating | 11.0/5.5 A |
| For Chemical Type | Highly-Refined Petroleum |
| Maximum Operating Pressure | 0 psi |
| Output Power | 2.5 hp |
| Maximum Flow Rate | 10.6 cfm |
| Seal Material | PTFE |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
