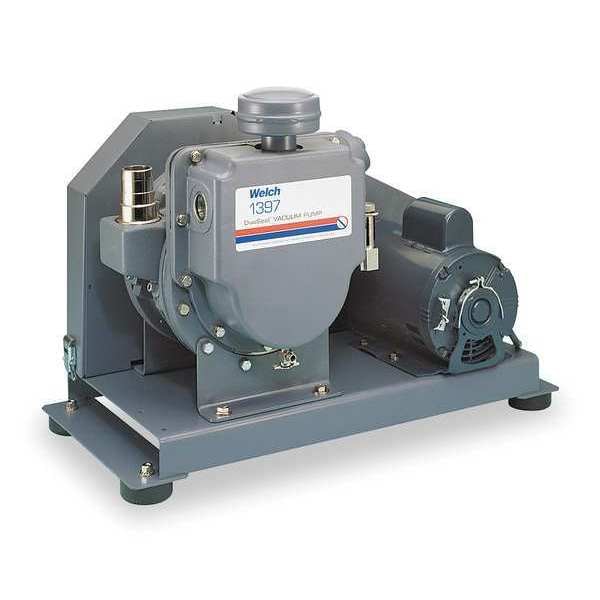

Vacuum Pump, 1 HP, 17.7 cfm, 115/230V
| Item | Vacuum Pump |
|---|---|
| HP | 1 hp |
| Voltage | 115/230V AC |
| Phase | 1 |
| Weight | 205 lb |
| Amps AC | 11.0/5.5 |
| Displacement | 17.7 cfm |
| NPT Inlet | 1-3/4 in |
| Overall Length | 26 in |
| Overall Height | 18-3/4 in |
| Ballast | Gas, Inhibits Condensation Inside Pump |
| Outlet Size | 1 5/8 in NW |
| Application | Chamber Evacuation, Degassing, Freeze Drying, Light Bulb, Neon Sign Manufacturing, Picture Tube Evacuation, Potting, Rice Porosity Test, Vacuum Drying |
| Overall Width | 13-3/4 in |
| Includes | Oil |
| Ultimate Pressure Torr | 1 x 10-4 |
| Oil Capacity | 40 fl oz |
| Finish | Paint |
| RPM | 400 RPM |
| Tube Inside Dia. | 1-5/8 in |
| Filter | Intake, Screens Reduce Possibility of Foreign Material Entering Pump |
| Hz | 60 |
| Valve Type | Gas Ballast |
| Outlet Type | NW |
| Frequency | 50 Hz |
| Maximum Flow Rate | 17.7 cfm |
| Runs Dry | No |
| Fluid Compatibility | Oil |
| Maximum Discharge Pressure | 0 mbar |
| Inlet Size | 1 5/8 in NPT |
| Maximum Viscosity | 339 SUS |
| Seal Material | PTFE |
| Output Power | 1.25 hp |
| Thermal Protection | Reset |
| Current Rating | 11.0/5.5 A |
| Maximum Speed | 400 RPM |
| Filter Type | Screens |
| Maximum Operating Pressure | 0 psi |
| Maximum Vacuum | 0.0001 Torr |
| Inlet Type | NPT |
| For Chemical Type | Highly-Refined Petroleum |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
