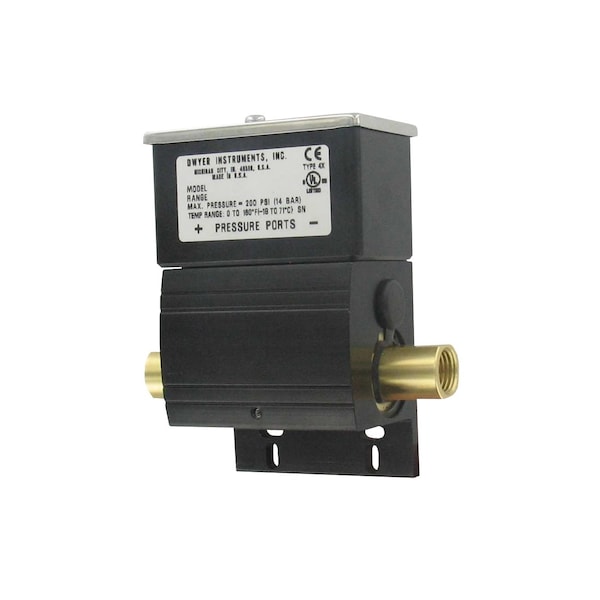

Interruptor de presión diferencial, Pr Sw 2550 PSI.
| Wetted Materials | Connection: Brass; Diaphragm: Fluoroelastomer. |
|---|---|
| Process Connection | 1/4" NPT female. |
| Electrical Rating | 5 A @ 125/250 VAC, 5 A res. @ 30 VDC. |
| Agency Approvals | CE, cULus. |
| Set Point Adjustment | External screw. |
| Switch Type | SPDT snap switch. |
| Repeatability | ±2% of full range. |
| Temperature Limits | 30 to 140°F (-1 to 60°C). |
| Enclosure Rating | Weatherproof UL type 4X (IP65). |
| Service | Compatible gases and liquids. |
| Mounting Orientation | Ports on horizontal plane, ±10°. |
| Pressure Limits | Maximum static pressure: 200 psig (13.8 bar); maximum differential pressure: 1.25 x model's highest set point. |
| Conduit Connection | 0.871" diameter hole for 1/2" conduit fitting. |
| Package Quantity | 1 |
