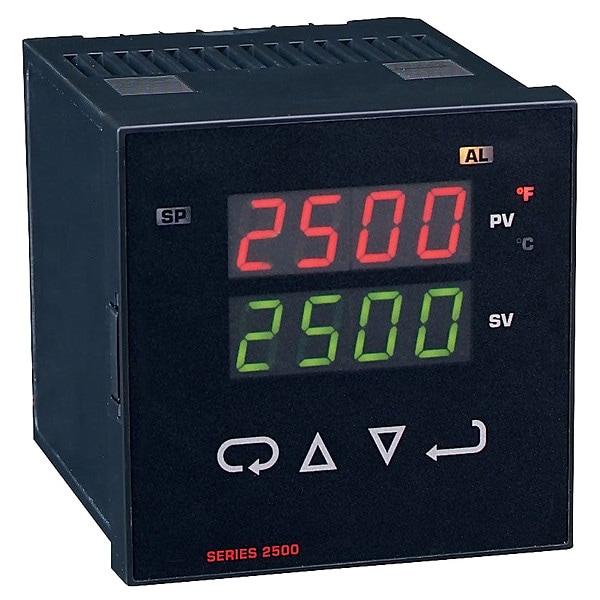

Controlador de temperatura digital, 95.9 mm de largo.
| Item | Digital Temperature Controller |
|---|---|
| Digital/Analog | Digital |
| Sensor Type | RTD |
| Description/Special Features | Outputs Include Solid State Relay, Mechanical Relay, Programmable Alarm can Act as High or Low or High/Low Guard Band Alarm |
| DIN Size | 0.25 |
| Input Voltage | 100 to 240V AC |
| Switch Function | SPDT, 10 A @ 240 VAC |
| Output | (1) Relay |
| Temp. Range | 14 to 131 deg F |
| Control Mode | PD/Full PID, PI, Self-Tune PID |
| Amps | 0 to 20mA |
| Series | Series 2500 |
| Depth | 115.8 mm |
| Alarms | No Alarm |
| Width | 95.9 mm |
| Power Consumption | 5 VA |
| Length | 95.9 mm |
| Standards | CE, cULus |
| Package Quantity | 1 |
