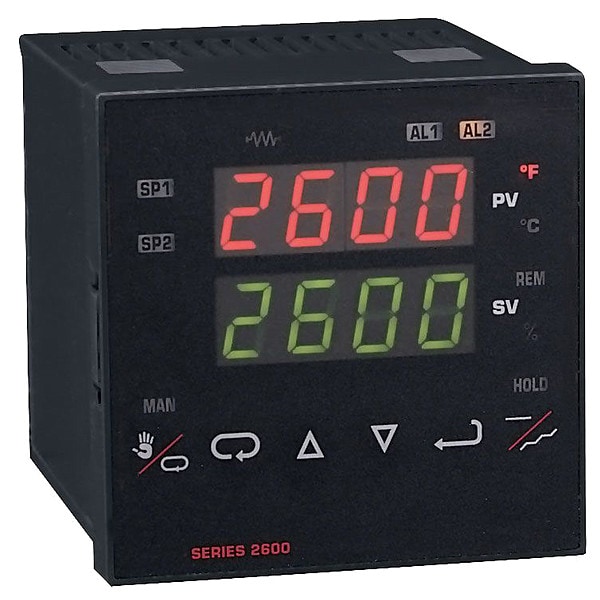

Controlador de temperatura digital, 95.9 mm de largo.
| Item | Digital Temperature Controller |
|---|---|
| Digital/Analog | Digital |
| Sensor Type | RTD, Thermocouple Types J, K, E, T, L, N, B, C, S, R |
| Description/Special Features | 16 Segments of Ramp/Soak with Program End Control, Four Password Protected Security Levels, Front Panel Programmability, NEMA 4X (IP65) Front Panel Resists Dust & Moisture |
| DIN Size | 0.25 |
| Input Voltage | 100 to 240V AC |
| Switch Function | SPDT, 10 A @ 240 VAC |
| Output | (1) Relay |
| Temp. Range | 14 to 131 deg F |
| Control Mode | Fuzzy Logic, Self-Tune PID |
| Amps | 10A |
| Length | 95.9 mm |
| Alarms | Relay, 10A, SPDT |
| Width | 95.9 mm |
| Display | Two 4-digit, 7 segment, 0.56" (14.2 mm) high LED. |
| Accuracy | ±0.25% of span, ±1 least significant digit. |
| Standards | CE, cULus |
| Series | Series 2600 |
| Depth | 115.8 mm |
| Control Output Ratings | Relay: SPDT, 10 A @ 240 VAC resistive, 1/2 hp @ 120 VAC, 1/3 hp @ 240 VAC; Alarm Relay: SPST, 3 A @ 240 VAC resistive; Proportional Current: 0-20 mA DC, scalable into 600 ohms maximum. |
| Front Panel Rating | NEMA 4X . |
| Operating Temperature | 14 to 131°F (-10 to 55°C). |
| Package Quantity | 1 |
