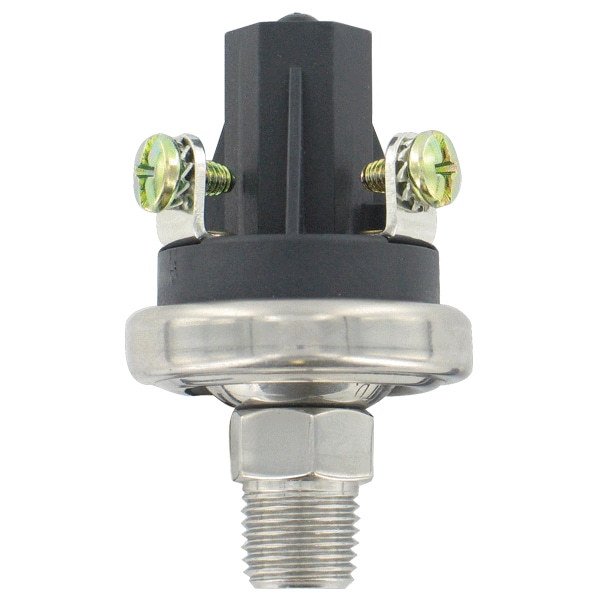

Interruptor de presión duradero de latón, ajustable de .5 a 1 psi, SPDT, conexión macho de 1/4 pulgadas NPT.
| Features | High switch cycle means long life for extended duty applications; Mounting in any position and feature simple makes a reliable switching for equipment and OEM applications |
|---|---|
| Process Connection | 1/4" male NPT. |
| Wetted Materials | Base: 304 SS, Diaphragm: polyimide film. |
| Electrical Connections | #8-32 screw terminals. |
| Service | Air, motor oils, transmission oils, jet fuels, and similar hydrocarbon media. (Not for water use). |
| Mounting Orientation | Switch can be installed in any position. |
| Switch Type | 1 SPST NO, 1 SPST NC. NO and NC switch independent from each other. |
| Agency Approvals | CE. |
| Repeatability | ±10% of set point. |
| Pressure Limits | Operating Pressure: 150 psi (10.3 bar) for 0.5-24 psi set point ranges, 250 psi (17.2 bar) for 25-150 psi set-point ranges. Proof Pressure: 500 psi (34.5 bar). Burst Pressure: 750 psi (51.7 bar) for 0.5-24 psi set point ranges, 1250 psi (86.2 bar) for 25-150 psi set point ranges. |
| Enclosure Rating | General purpose or with cover: IP65 - Weatherproof. |
| Temperature Limits | -40 to 248°F (-40 to 120°C). |
| Set Point Adjustment | Screw. |
| Electrical Ratings | Resistive: 15 A @ 6 VDC, 8 A @ 12 VDC, 4 A @ 24 VDC; Inductive: 1 A @ 120 VAC, 0.5 A @ 240 VAC. |
| Package Quantity | 1 |
