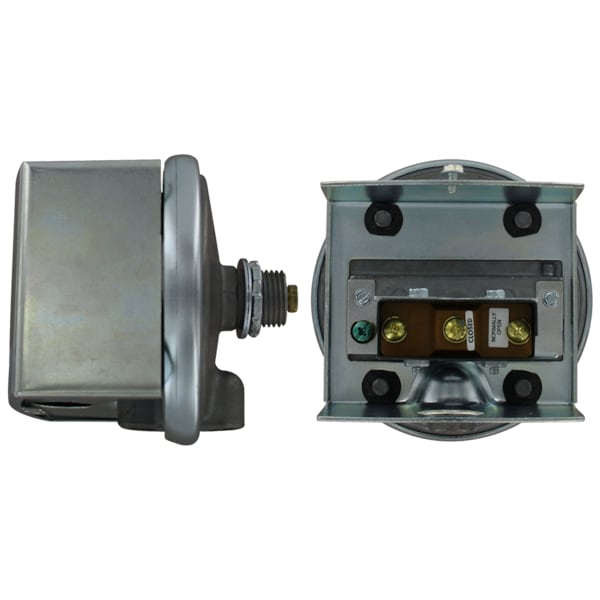

Interruptor de presión diferencial baja, de 25 a 9 pulgadas de agua.
| Features | No power to operate DPDT switch means no additional wiring or conduit reduces material and installation labor costs; Easy access for modifying set point simplifies adjustment; Both control contacts activate at the same time eliminating system issues where lead switch activities prevent the lagging switch from sending a signal |
|---|---|
| Electrical Connections | Screw type terminal block. |
| Service | Air and non-combustible, compatible gases. |
| Temperature Limits | -30 to 180°F (-34 to 82.2°C). |
| Pressure Limits | 10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge. |
| Set Point Adjustment | Screw type inside mounting spud. |
| Mounting Orientation | Diaphragm in vertical position. Consult factory for other position orientations. |
| Process Connections | 1/8" female NPT. |
| Switch Type | 2 SPDT. |
| Electrical Rating | 4 A @ 125/250 VAC. |
| Repeatability | ±4% max. |
| Package Quantity | 1 |
