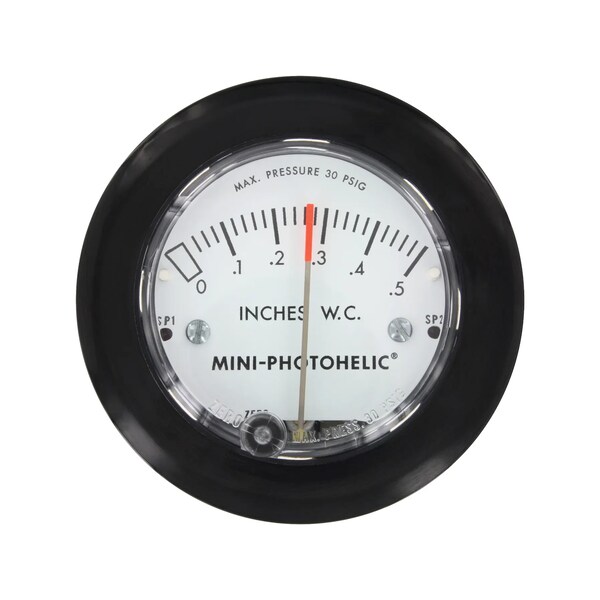

Interruptor de presión diferencial miniatura con manómetro, 01 pulgada en la perilla.
| Electrical Connections | Screw type terminal block. Accepts 22-12 AWG wire. |
|---|---|
| Accuracy | ±5% FS @ 70°F (21.1°C). Gage face mounted in vertical position. |
| Features | Gage reading unaffected by switch operation and will continue to read pressure even during power loss; Visible switch status LED provides indication of set point switching state; Compact design but with the power of larger devices can meet the same application specifications |
| Size | 4-1/8" (104.78 mm) depth x 3-1/16" (77.79 mm) diameter. |
| Temperature Limits | 20 to 120°F (-6.7 to 49°C). |
| Power Requirements | 24 VDC / 24 VAC 50/60 Hz 4 W. |
| Pressure Limits | 30 psig (2.067 bar). |
| Set Point Adjustment | Push buttons. |
| Standard Accessories | (2) mounting screws, (1) .050" hex allen wrench. |
| Agency Approvals | CE, cULus. |
| Mounting Orientation | Gage face in vertical position. |
| Electrical Rating | 5 A @ 120/240 VAC resistive; 5 A @ 30 VDC. |
| Switch Type | (2) SPDT relays. |
| Process Connections | Barbed for 3/16" ID tubing (STD); 1/8" male NPT (optional). |
| Service | Air and non-combustible, compatible gases. |
| Package Quantity | 1 |
