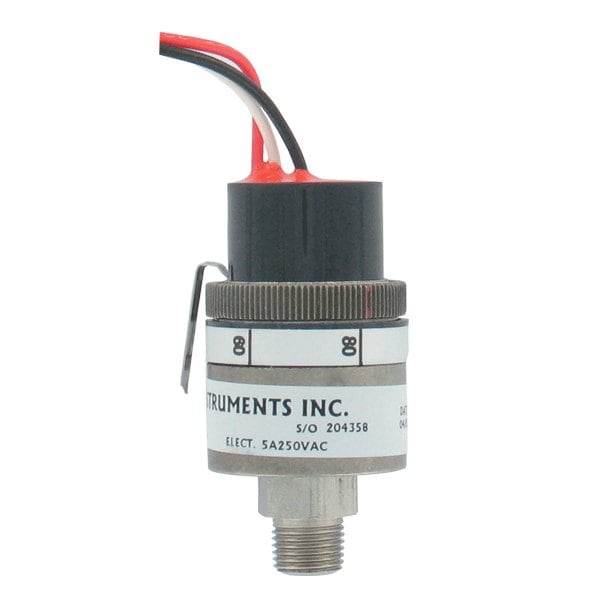

Interruptor de presión ajustable en miniatura, Vac Sw 228 In Hg 5 A.
| Features | Field adjustable with simple indicating pointer reduces installation time bringing application on-line faster; Stainless steel construction provides a durable solution in harsh environments |
|---|---|
| Electrical Connections | 3-wire, 20 AWG insulated with PVC, 12" (30 cm) length. |
| Wetted Materials | Capsule: 17-7 PH SS; Fitting: 303 stainless steel. |
| Process Connection | 1/8" male NPT. |
| Service | Compatible liquids or gases. |
| Temperature Limits | -65 to 225°F (-54 to 107°C), a set point change of up to 2% when used below -10°F (-23°C) or above 125°F (52°C). |
| Electrical Ratings | 5 A @ 250 VAC, 3 A @ 28 VDC. |
| Agency Approvals | UR. |
| Switch Type | SPDT snap action. |
| Package Quantity | 1 |
