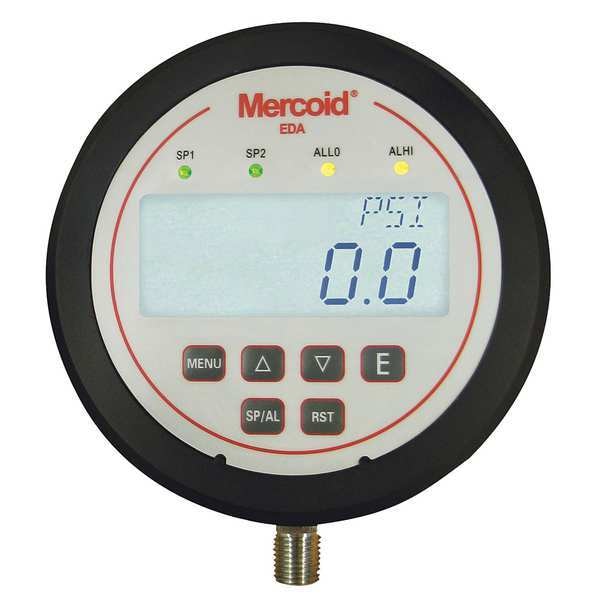

Pressure Switch, SPDT, 0 to 60 psi
| Item | Pneumatic-Electric Switch |
|---|---|
| Switch Type | SPDT |
| Switch Action | Normally Closed, Normally Open |
| Pressure Connection | 1/4 in MNPT |
| Connection | 1/4 in MNPT |
| Type | Programmable |
| Range (PSI) | 0 to 60 |
| Close (PSI) | Adjustable |
| Open (PSI) | Adjustable |
| Function | Pressure Control |
| Application | Air Compressors, Damper Control, Static Pressure, Fan Control, Filter Status, Process Equipment |
| Differential Pressure (PSI) | Fully Adjustable Over Range |
| Enclosure | NEMA 4X |
| Mounting | Direct |
| Reset | Auto, Manual |
| Standards | CE Listed, UL Listed |
| Overall Width | 5 in |
| Air Connection Gender | Male |
| Locked Rotor Current @ 120V AC | Not Applicable |
| Full Load Current @ 240V AC | 5 A |
| Electrical Connections | Terminal Blocks |
| Pilot Duty @ 240V AC | Not Applicable |
| Contact Form | SPDT |
| Transmitter Output | None |
| Number of Switches | 2 |
| Air Connection Type | NPT |
| Locked Rotor Current @ 240V AC | Not Applicable |
| Mounting Style | Flush, Panel, Pipe |
| Operating Temperature - Maximum | 176 deg F |
| Pilot Duty @ 120V AC | Not Applicable |
| Number of Function | Single Function |
| Full Load Current @ 120V AC | 5 A |
| Air Connection Size | 1/4 in |
| Operating Temperature - Minimum | 0 Degrees F |
| Conduit Size | 1/2 in |
| Signal Pressure - Minimum | 0 psi |
| Product Type | Pressure Control |
| Signal Pressure - Maximum | 60 psi |
| Case Material | Polycarbonate |
| Overall Depth | 2-1/2 in |
| Pressure Differential | 60 psi |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
