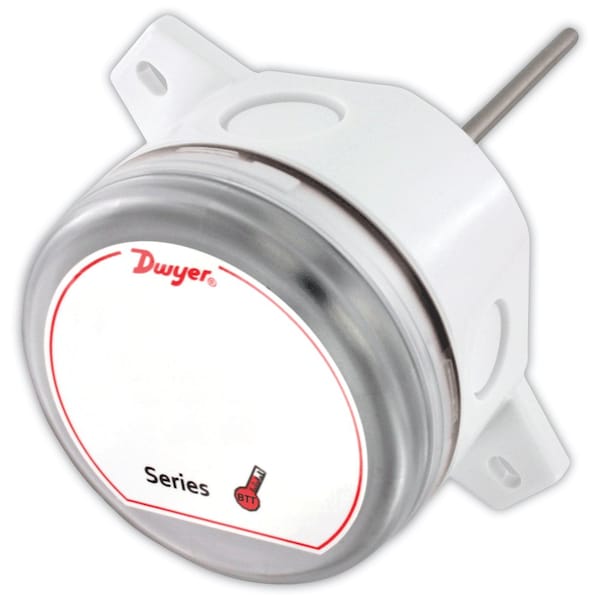

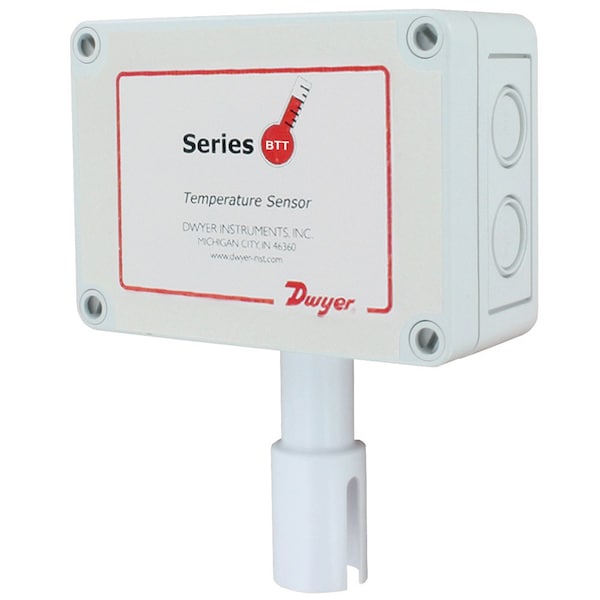

Transmisor de temperatura montado en la pared, Transmisor de temperatura 420mA Europeo.
| Accuracy | ±0.5°C @ 25°C. |
|---|---|
| Process Connection | 1/2" NPT . |
| Wetted Materials | All models: 304 SS (probe), polycarbonate (housing); Duct and immersion models: Neoprene (gasket); Outside air models: Nylon (insert), silicone (O-ring). |
| Temperature Limits | Operating: -40 to 302°F (-40 to 150°C). |
| Output Signal | 4 to 20 mA or 0 to 10 VDC (depending on model). |
| Enclosure Rating | NEMA 4X . |
| Response Time | 100 msec |
| Features | Duct, immersion, and outside air models available; Radiation shield available for mounting in direct sunlight; Transmitter output allows for longer wire runs than standard thermistor sensors |
| Agency Approvals | CE. |
| Power Requirements | 13 to 36 VDC for current models, 13 to 36 VDC or 16 to 28 VAC for voltage models. |
| Conduit Connection | 1/2" NPT. |
| Thermal Effect | ±0.01%/°C. |
| Package Quantity | 1 |
