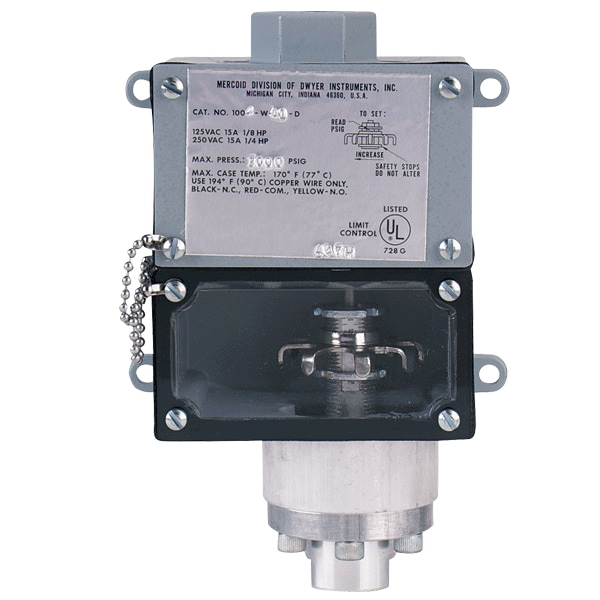

Interruptor de presión a prueba de intemperie, rango ajustado de 10-70 psig, banda muerta aproximada fija de 4 psig.
| Process Connection | 1/4" female NPT. |
|---|---|
| Electrical Connections | Screw type. |
| Features | Weatherproof housing is ideal for a wide variety of applications where dust or water is present; Spring movement design provides for control in any mounting position and prevents contact chatter reducing false or inconsistent switching |
| Mounting Orientation | Any position. |
| Temperature Limits | -30 to 170°F (-35 to 77°C). |
| Pressure Limit | 3000 psig (206.8 bar). |
| Electrical Rating | 15 A @ 125/250 VAC resistive. |
| Enclosure Rating | Weatherproof, meets NEMA 4X (IP66). |
| Switch Type | SPDT snap switch. |
| Agency Approvals | CE, UL. |
| Set Point Adjustment | Internal thumbwheel. |
| Conduit Connection | 3/4" female NPT. |
| Package Quantity | 1 |
