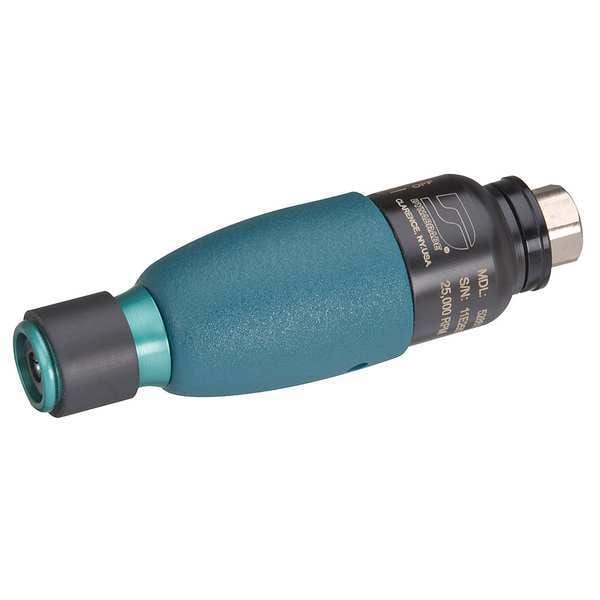

Straight Pencil Grinder, 1/4 in NPT Female Air Inlet, 1/4" Collet, General, 25,000 RPM, 0.3 hp
| Item | Pencil Grinder |
|---|---|
| Overall Length | 5-5/8 in |
| Air Inlet | 1/4 in NPT Female |
| Horsepower | 0.4 |
| Free Speed | 25,000 rpm |
| Max. Speed | 25,000 rpm |
| Grinder Type | Straight |
| Bearings | Shielded |
| Average CFM @ 15 Second Run Time | 5 |
| Hose Length | 60 in |
| Throttle | Twist |
| Variable Speed | Yes |
| Collet | 1/4 in |
| Duty | General |
| Min. Hose Size | 1/4 in |
| Tool Weight | 1.1 lb |
| CFM @ Full Load | 20 |
| Whip Hose I.D. | 1/4 in |
| Housing Material | Aluminum |
| Bearing Type | Shielded |
| Standards | ANSI B186.1, ANSI B7.1, CFR 29 Part 1910, EN ISO-15744 |
| Application | Bronze and Brass, Casting Houses, Effective on Cast parts of Aluminum, Quickly and Efficiently Removes Gates and Parting Lines in Cast Parts |
| Features | High-Efficiency Rotary Vane Air Motor Model, Tactile Grip on Shaft End Allows Fingertip Control |
| Head Type | Standard Head |
| Lock-On Switch | No |
| Duty Rating | Heavy Duty |
| Air Inlet Connection Size | 1/4 in |
| Throttle Type | Twist |
| Air Consumption | 20 cfm |
| Grip Style | Barrel Grip |
| Power Source | Air Powered |
| Accessory Free Tool Change | No |
| Dust Management | None |
| Safety Features | Tactile Grip |
| Speed Setting | Variable Speed |
| Brake Type | None |
| Collet Size | 1/4 in |
| Safety Stop Mechanisms | None |
| Kit Contents | Bare Tool |
| Anti-Restart Technology | No |
| Exhaust Location | Rear |
| Air Inlet Type | NPT |
| Air Pressure | 100 psi |
| Tether Style | Not Tether Capable |
| Air Inlet Gender | Female |
| Anti-Kickback Clutch Type | None |
| Lock-Off Switch | No |
| Package Quantity | 1 |
