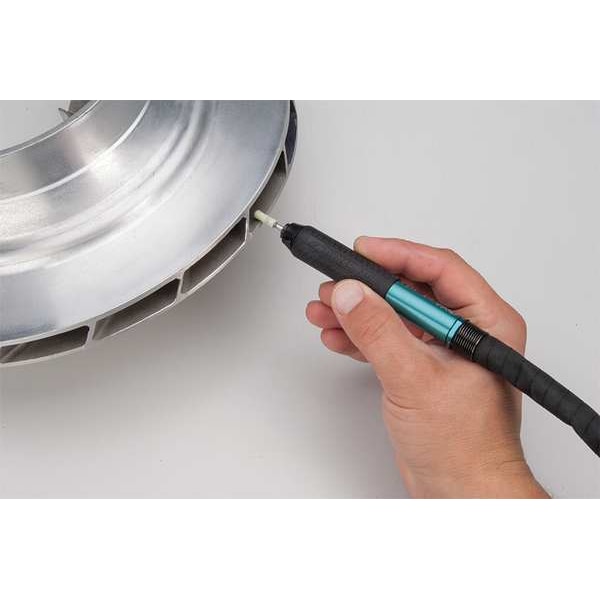

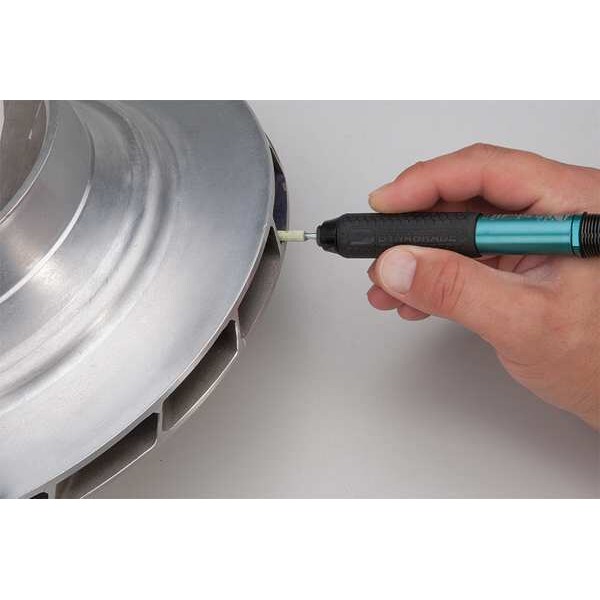

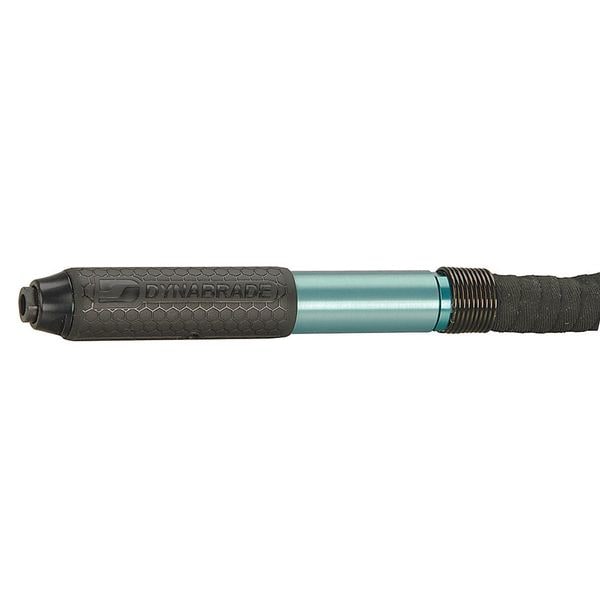

Straight Pencil Grinder, 1/4 in NPT Female Air Inlet, 1/4" Collet, General, 60,000 RPM, 0.1 hp
| Item | Pencil Grinder |
|---|---|
| Overall Length | 4-1/2 in |
| Air Inlet | 1/4 in NPT Female |
| Horsepower | 0.1 |
| Free Speed | 60,000 rpm |
| Max. Speed | 60,000 rpm |
| Grinder Type | Straight |
| Duty | General |
| Hose Length | 5 in |
| Min. Hose Size | 1/4 in |
| Whip Hose I.D. | 1/4 in |
| Bearings | Large Precision |
| Throttle | Air Regulator |
| Collet | 1/4 in |
| CFM @ Full Load | 0.9 |
| Variable Speed | Yes |
| Tool Weight | 0.7 lb |
| Average CFM @ 15 Second Run Time | 0.86 |
| Bearing Type | Large Precision |
| Anti-Restart Technology | No |
| Throttle Type | Lever |
| Tether Style | Not Tether Capable |
| Speed Setting | Variable Speed |
| Anti-Kickback Clutch Type | None |
| Standards | ANSI B7.1, CAGI B186.1, CFR 29 Part 1910, ISO-11148 |
| Kit Contents | Bare Tool |
| Dust Management | None |
| Lock-On Switch | No |
| Air Consumption | 6 cfm |
| Collet Size | 1/8 in |
| Lock-Off Switch | No |
| Features | Ergonomic Tactile Grip, High-Quality Air Line |
| Air Inlet Connection Size | 1/4 in |
| Head Type | Standard Head |
| Safety Stop Mechanisms | None |
| Duty Rating | Heavy Duty |
| Grip Style | Barrel Grip |
| Application | Composites, Investment Castings, Jewelry, Machine Shops, Medical Implants, Tool and Die Shops, Turbine Blade Manufacturers |
| Safety Features | Non-Slip Grip |
| Power Source | Air Powered |
| Brake Type | None |
| Air Inlet Gender | Female |
| Air Pressure | 90 psi |
| Accessory Free Tool Change | Yes |
| Exhaust Location | Rear |
| Air Inlet Type | NPT |
| Package Quantity | 1 |
