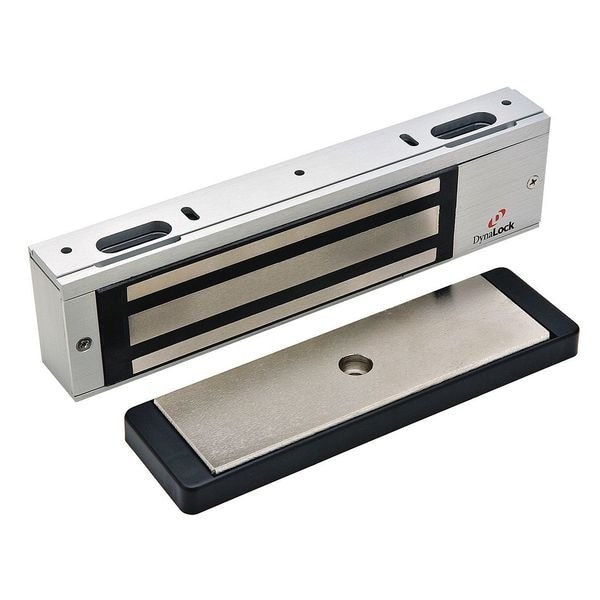

Electromagnetic Lock, 11in. Lx2-3/4in. W
| Item | Electromagnetic Lock |
|---|---|
| Finish | Aluminum |
| Type | Surface Mount |
| Input Voltage | 12/24V AC/DC |
| For Use With | Interior Doors |
| Material | Aluminum |
| Includes | Mounting Hardware |
| Opening Action | Electromagnetic |
| Options Included | Outswing Electromagnetic Lock Door |
| Series | 3000 |
| Features | High Security Monitor |
| Release Delay | Instantaneous |
| Standards | CSFM, cULus Listed, NYC MEA #23-92-E |
| Lock Body Depth (In.) | 1-1/2 |
| Amp Draw @ 12V | 0.42 |
| Amp Draw @ 24V | 0.21 |
| Lock Body Length (In.) | 11 |
| Total Projection (In.) | 1-1/2 |
| Mfr. Series | 3000 |
| Holding Force (Lb.) | 1,500 |
| Lock Body Width (In.) | 2-3/4 |
| Holding Force - Maximum | 1,500 lb |
| Overall Height | 2-3/4 in |
| Overall Width | 1-1/2 in |
| ANSI/BHMA Finish | Unfinished |
| Includes Hardware | Hardware Included |
| Overall Length | 11 in |
| Projection | 1-1/2 in |
| Current @ 12V | 374 mA |
| Lock Body Depth | 1-1/2 in |
| Lock Body Width | 2-3/4 in |
| Current @ 24V | 210 mA |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
