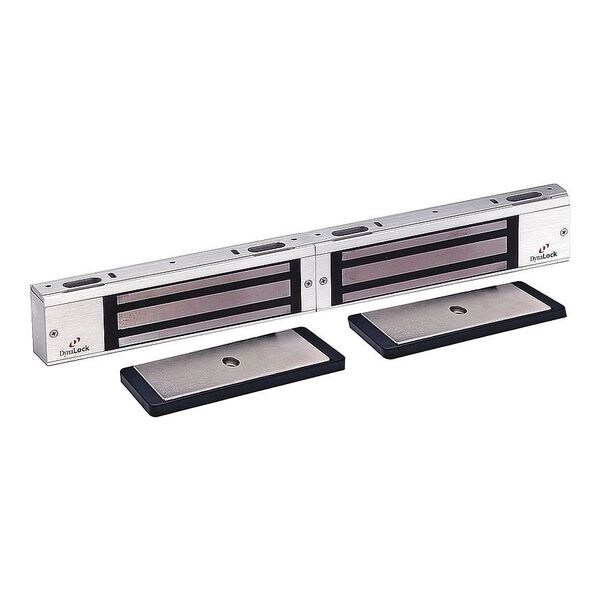

Electromagnetic Lock, 1500lb., 3000 Series
| Item | Electromagnetic Lock |
|---|---|
| Finish | Anodized |
| Type | Surface Mount |
| Input Voltage | 12/24V AC/DC |
| For Use With | High Security Gate Applications |
| Material | Steel |
| Includes | Mounting Hardware |
| Opening Action | Outside Swing |
| Options Included | Dual Voltage |
| Series | 3000 |
| Features | Surface Mounted for Outswing or Inswing Single or Double Doors |
| Armature Depth (In.) | 1/2 |
| Armature Width (In.) | 2-3/8 |
| Strike Plate Length (In.) | 7-3/8 |
| Armature Length (In.) | 7-3/8 |
| Release Delay | Instantaneous |
| Lock Body Width (In.) | 2-3/4 |
| Lock Body Depth (In.) | 1-1/2 |
| Amp Draw @ 12V | 420mA/12V DC |
| Projection from Wall (In.) | 1-1/2 |
| Package Quantity | 1 |
| Strike Plate Width (In.) | 2-3/8 |
| Holding Force (Lb.) | 1,500 |
| Total Projection (In.) | 1-1/2 |
| Lock Body Length (In.) | 22 |
| Standards | CE Certified, CSFM, cULus Listed, NYC MEA #23-92-E |
| Strike Plate Depth (In.) | 1/2 |
| Amp Draw @ 24V | 210mA/24V DC |
| Mfr. Series | 3000 |
| Armature Length | 7-3/8 in |
| Armature Width | 2-3/8 in |
| Lock Body Width | 2-3/4 in |
| Strike Plate Width | 2-3/8 in |
| Lock Body Depth | 1-1/2 in |
| Current @ 24V | 0.21 mA |
| Current @ 12V | 0.42 mA |
| Includes Hardware | Hardware Included |
| Overall Width | 1-1/2 in |
| Overall Height | 2-3/4 in |
| Projection | 1-1/2 in |
| Holding Force - Maximum | 1,200 lb |
| Overall Length | 22 in |
| Strike Plate Height | 1/2 in |
| Country of Origin (subject to change) | United States |
