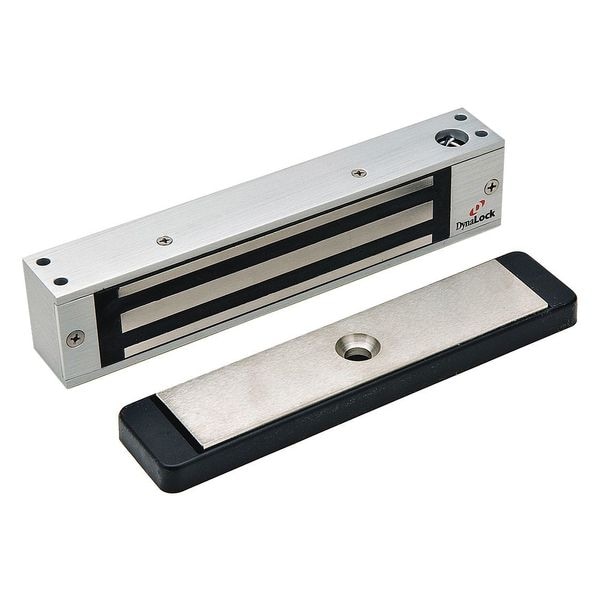

Electromagnetic Lock, 8-1/2in.Lx1-3/4in.W
| Item | Electromagnetic Lock |
|---|---|
| Finish | Aluminum |
| Type | Surface Mount |
| Input Voltage | 12/24V DC |
| For Use With | Interior Doors |
| Material | Aluminum |
| Includes | Mounting Hardware |
| Opening Action | Electromagnetic |
| Options Included | Dsm- Door Status Switch, Dual Voltage |
| Series | 2585 |
| Features | Surface Mounted for Single Outswing or Inswing Doors |
| Standards | cULus Listed |
| Holding Force (Lb.) | 650 |
| Total Projection (In.) | 1-1/4 |
| Lock Body Width (In.) | 1-3/4 |
| Mfr. Series | 2585 |
| Amp Draw @ 24V | 0.25 |
| Amp Draw @ 12V | 0.50 |
| Release Delay | Instantaneous |
| Lock Body Length (In.) | 8-1/2 |
| Lock Body Depth (In.) | 1-1/4 |
| ANSI/BHMA Finish | Unfinished |
| Projection | 1-1/4 in |
| Overall Height | 1-3/4 in |
| Current @ 12V | 500 mA |
| Overall Width | 1-1/4 in |
| Current @ 24V | 250 mA |
| Holding Force - Maximum | 650 lb |
| Includes Hardware | Hardware Included |
| Overall Length | 8-1/2 in |
| Lock Body Width | 1-3/4 in |
| Lock Body Depth | 1-1/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
