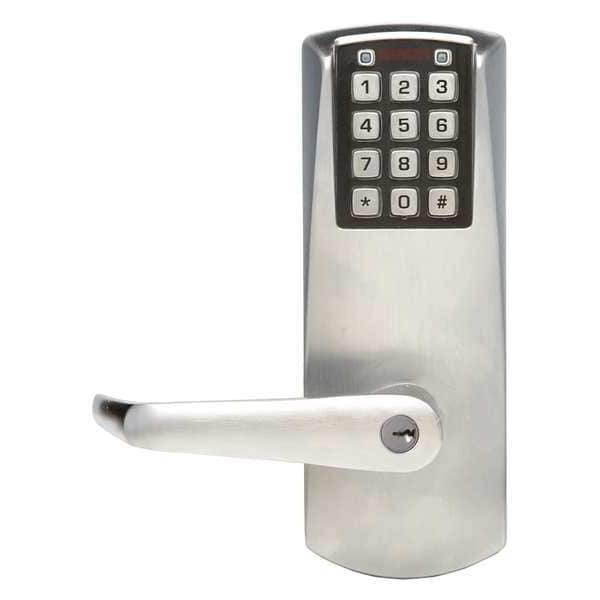

Electronic Lock, Satin Chrome, 12 Button
| Item | Electronic Keyless Lock |
|---|---|
| Handle Type | Lever |
| Function | Entry with Key Override and Privacy |
| Key Override Options | Best and Equivalents (6 or 7 Pin Length); Schlage "C" Keyway |
| Hand | Nonhanded |
| Finish | Satin Chrome |
| Door Thickness | 1-3/8 to 2-1/2 in |
| Keypad | 12 Button |
| Backset | 2 3/4 in |
| Electrical/Mechanical | Electrical |
| Product Type | Electronic Keyless Lock |
| Lockset Function | Entrance |
| Latch Length | 1/2 in |
| Outside Width | 3-5/16 in |
| Case Material | Solid Cast |
| Grade | 1 |
| Outside Depth | 2-3/16 in |
| Weather Resistant | Yes |
| Max. User Codes | 100 |
| Series | E2000 |
| ADA Compliant | Yes |
| Event Audit Trail | 1,000 |
| Access Method | Keypad |
| Standards | ANSI/BHMA A156.13 Grade 1, ANSI/BHMA A156.2 Grade 1, ANSI/BHMA A156.25 Grade 1, ANSI/BHMA A156.3 Grade 1 |
| Inside Height | 8-7/8 in |
| Operating Temp. Range | -31 Degrees to 151 Degrees F Indoor/Outdoor Approved |
| Inside Depth | 2-1/4 in |
| Outside Height | 8-15/16 in |
| Keypad Material | Solid Metal |
| Inside Width | 3-1/4 in |
| Battery Life | 100,000 Cycles |
| Max. Proximity Range | At Lock |
| Includes | Lock Assembly |
| Number of Keys | 2 |
| Latch Front Size | 3/4 in |
| Timed Entry Allowance | 2 to 20 sec |
| Lock Material | Solid Cast |
| Mounting Style | Cylindrical |
| Fire Rating | 3 hr |
| Power Source | (3) AA Batteries |
| Bolt Throw | 1/2 in |
| Voltage | 3 AA Batteries |
| Location Type | Commercial |
| Material | Zinc |
| Overall Width | 3-5/16 in |
| Overall Height | 8-15/16 in |
| Type | Electronic |
| Overall Depth | 2-13/16 in |
| Lockset Handle Type | Lever |
| Latch Front Length | 8 in |
| Lockset Material | Solid Cast |
| Includes Core | Core Not Included |
| Event Audit Trails | 1,000 |
| ANSI Grade | 1 |
| Temperature - Maximum | 151 deg F |
| Temperature - Minimum | -31 deg F |
| Cylinder Core Type | Interchangeable Core Cylinder |
| User Codes - Maximum | 100 |
| Lockset Type | Electrical |
| UL Fire Rating | UL10C |
| Door Thickness - Maximum | 2-1/2 in |
| Latch Front Width | 1-1/4 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Includes Hardware | Hardware Not Included |
| Strike Type | ASA, T-Strike |
| Hand Orientation | Non-Handed |
| Door Thickness - Minimum | 1 3/8 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
