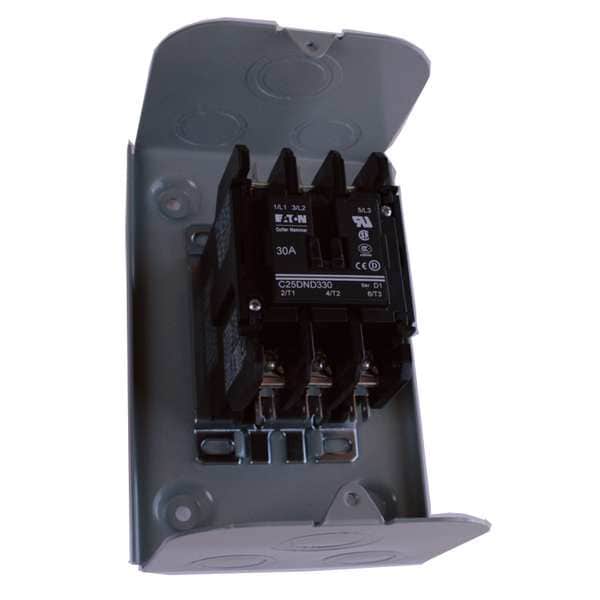

Contactador de propósito definido de 120VAC sin reversión, 3 polos y 30 amperios.
| Full Load Amps-Inductive | 30 A |
|---|---|
| Item | Definite Purpose Contactor |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 40 A |
| Number of Poles | 3 |
| Coil Volts | 120V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 230V | 5 |
| HP @ 1 Phase - 240V | 5 hp |
| HP @ 3 Phase - 230V | 10 |
| Height | 6-3/4 in |
| Width | 4.1 in |
| HP @ 3 Phase - 575V | 15 hp |
| Depth | 3-1/2 in |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 480V | 15 hp |
| Enclosure NEMA Rating | 1 |
| Includes | Quick Connect Pressure Plate Terminal |
| Hz | 50/60 |
| Enclosure Type | NEMA 1 |
| Standards | CSA, RoHS, UL Listed |
| Series | C25 Series |
| Phase | Three |
| Terminals | Screw/pressure plate and quick connect terminals (side-by-side) |
| Weight | 2.7 lb |
| Certifications | CSA Certified;UL Recognized |
| Model | Contactor |
| Coil | 110-120 Vac, 50/60 Hz |
| Amperage Rating | 30 A |
| Connection | Quick |
| Frame Size | D |
| Product Name | Eaton definite purpose contactor |
| Enclosure | NEMA type 1 enclosed |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Coil Voltage | 110-120V AC |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| Horsepower @ Three Phase - 600V AC | 15 HP |
| Fluorescent Lighting Current Rating | Not Applicable |
| Maximum Operating Temperature | 158 deg F |
| Includes Shunt | Not Applicable |
| Minimum Operating Temperature | -13 deg F |
| Terminal Connection Type | Terminals |
| Full Load Current - Inductive | 30 A |
| Locked Rotor Load | 180 A @ 230V |
| Mounting Hole Distance - Width | 2 in |
| Input Control Type | 2-Wire |
| Mounting Postion | Vertical, Horizontal |
| Overall Height | 6-3/4 in |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Maximum Voltage Rating | 690 V AC |
| Overall Width | 4.1 in |
| Mounting Hole Distance - Height | 3-1/4 in |
| Full Load Current - Resistive | 40 A |
| Reversing Capability | Non-Reversing |
| Tungsten Lighting Current Rating | Not Applicable |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Frequency | 50/60 Hz |
| Overall Depth | 3-1/2 in |
| NEMA Enclosure Rating | 1 |
| Contactor Style | HVACR Definite Purpose Contactor |
| LED Lighting Current Rating | 40 A |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Auxiliary Contact Module Capacity | 4 |
| Package Quantity | 1 |
