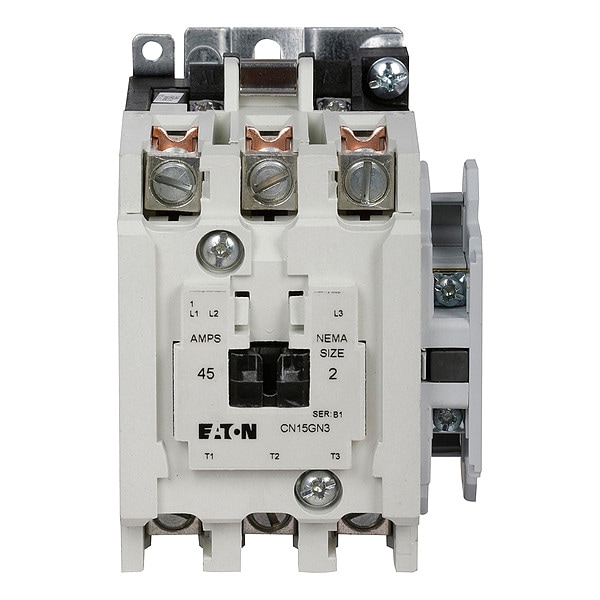

Contactador magnético de 120VCA no reversibles, 3 polos, 45 amperios, NEMA 2.
| Item | Magnetic Contactor |
|---|---|
| Full Load Amps | 45 A |
| Action | Non-Reversing |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| NEMA Contactor Size | 2 |
| Reversing | No |
| HP @ 1 Phase - 120V | 3 hp |
| Height | 3.4 in |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| Width | 4.8 in |
| HP @ 3 Phase - 208V | 10 hp |
| Depth | 5.6 in |
| HP @ 3 Phase - 575V | 25 hp |
| HP @ 3 Phase - 240V | 15 hp |
| HP @ 3 Phase - 480V | 25 hp |
| Enclosure NEMA Rating | No Enclosure |
| Standards | CSA, UL Listed |
| NEMA Size | 2 |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO |
| Frame / Series / Class / Code | Series Freedom, Code A, Frame 180mm |
| Series | Freedom |
| Product Width | 2.56 in |
| Certifications | CSA Certified |
| Phase | Three |
| Product Height | 5.05 in |
| Amperage Rating | 45 A |
| Size | 2 |
| Product Length/Depth | 4.44 in |
| HP rating - max | 3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V |
| Product Name | Eaton Freedom NEMA motor control contactor |
| Maximum Operating Temperature | 149 deg F |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Three Phase - 480V AC | 25 HP |
| Mounting Postion | Vertical, Horizontal |
| NEMA Enclosure Rating | No Enclosure |
| Reversing Capability | Non-Reversing |
| Horsepower @ Three Phase - 240V AC | 15 HP |
| Overall Depth | 4.44 in |
| Mounting Hole Diameter | 1/4 in |
| Terminal Connection Type | Screw Terminals |
| Resistance Properties | Impact Resistant, Temperature Resistant |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Mounting Hole Distance - Width | 2 in |
| Number of Auxillary Contacts | 1 |
| Mechanical Operating Durability | 10,000,000 |
| Full Load Current - Inductive | 45 A |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Electrical Operating Durability | 3,500,000 (AC-3), 62,000 (AC-4) |
| Coil Voltage | 110/120V AC |
| Frequency | 50/60 Hz |
| Embedded Surge Suppressor | No |
| Overall Width | 2.56 in |
| Contactor Style | NEMA |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Mounting Style | Panel Mount |
| Mounting Hole Distance - Height | 4-1/2 in |
| Frame Size | G |
| Maximum Voltage Rating | 600 V AC |
| Response Time | 20 msec |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Overall Height | 5.05 in |
| Minimum Operating Temperature | -4 deg F |
| Package Quantity | 1 |
