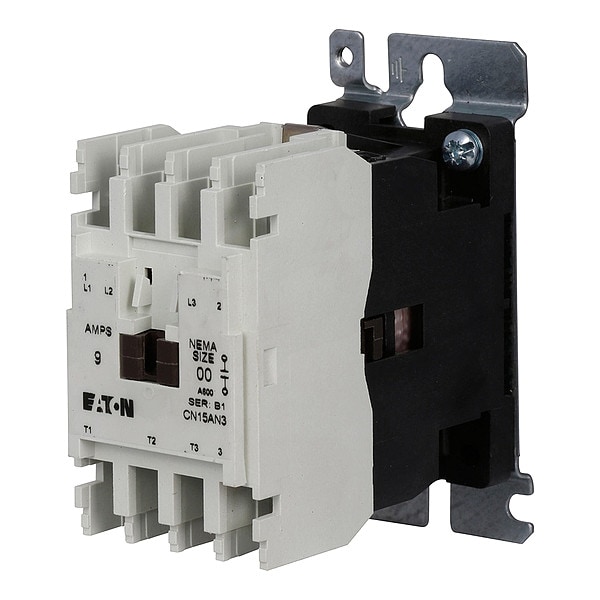

Contactador magnético de 120VCA no reversible de 3 polos 9A NEMA 00.
| Item | Magnetic Contactor |
|---|---|
| Action | Non-Reversing |
| Full Load Amps | 9 A |
| Number of Poles | 3 |
| NEMA Contactor Size | 0 |
| Coil Volts | 120 V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 1/3 hp |
| HP @ 1 Phase - 240V | 1 hp |
| Height | 2.6 in |
| HP @ 3 Phase - 208V | 1 1/2 hp |
| Width | 4 in |
| Depth | 3.9 in |
| HP @ 3 Phase - 575V | 2 hp |
| HP @ 3 Phase - 240V | 1 1/2 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 2 hp |
| Includes | Center Mounting Slot at Bottom |
| Frame / Series / Class / Code | Series Freedom, Code A, Frame 180mm |
| Standards | CSA, UL Listed |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO |
| NEMA Size | 0 |
| Series | Freedom |
| Amperage Rating | 9 A |
| Product Width | 1-3/4 in |
| Phase | Three |
| Certifications | UL Listed |
| Size | 0 |
| HP rating - max | 1/3 hp at 115V,1 hp at 230V, 1-1/2 hp at 208,240V, 2 hp at 480,600V |
| Product Length/Depth | 3.49 in |
| Product Height | 3.88 in |
| Coil Voltage | 110/120V AC |
| Product Name | Eaton Freedom NEMA motor control contactor |
| Horsepower @ Single Phase - 120V AC | 0.3333 HP |
| Maximum Operating Temperature | 149 deg F |
| Mounting Hole Distance - Height | 3.38 in |
| Mounting Hole Diameter | 1/4 in |
| Horsepower @ Three Phase - 240V AC | 1.5 HP |
| Overall Width | 1-3/4 in |
| Horsepower @ Three Phase - 208V AC | 1.5 HP |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 600V AC | 2 HP |
| Number of Auxillary Contacts | 1 |
| Maximum Voltage Rating | 600 V AC |
| Mounting Style | Panel Mount |
| Full Load Current - Inductive | 9 A |
| Embedded Surge Suppressor | No |
| Horsepower @ Single Phase - 240V AC | 1 HP |
| NEMA Enclosure Rating | No Enclosure |
| Frame Size | A |
| Minimum Operating Temperature | -4 deg F |
| Includes Auxiliary Contacts | Yes |
| Mechanical Operating Durability | 20,000,000 |
| Resistance Properties | Impact Resistant, Temperature Resistant |
| Mounting Hole Distance - Width | 1-1/2 in |
| Contactor Style | NEMA |
| Electrical Operating Durability | 400,000 (AC-3), 90,000 (AC-4) |
| Response Time | 12 msec |
| Overall Height | 3.88 in |
| NEMA Enclosure Material | Not Applicable |
| Terminal Connection Type | Screw Terminals |
| Overall Depth | 3.49 in |
| Mounting Postion | Vertical, Horizontal |
| Reversing Capability | Non-Reversing |
| Horsepower @ Three Phase - 480V AC | 2 HP |
| Package Quantity | 1 |
