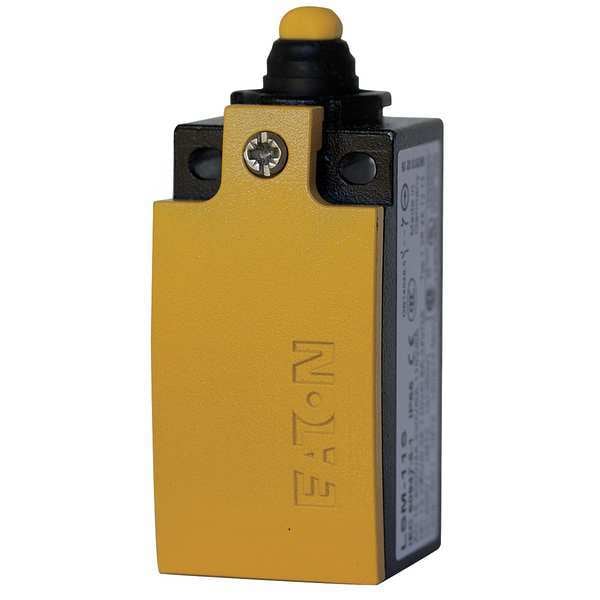

1NO/1NC Cuerpo de interruptor de límite Nema 1, 2, 4, 4X, 6, 12, 13.
| Item | Limit Switch Body |
|---|---|
| For Use With | Titan Limit Switch |
| Contact Form | 1NO/1NC |
| AC Contact Rating | 6 A @ 240 V |
| DC Contact Rating | 3 A @ 24 V |
| IP Rating | IP66, IP67 |
| NEMA Rating | 1, 12, 13, 2, 4, 4X, 6 |
| Operating Temp. | -13 to 158 deg F |
| Standards | RoHS, UL Listed |
| Electrical Connection | Cage Clamp |
| Material | Zinc |
| Accuracy | ±0.02mm |
| Connection | Cage clamps |
| Certifications | UL Listed |
| Enclosure material | Die cast zinc |
| Operating temperature - min | -13°F |
| Product Width | 1.32 in |
| Product Length/Depth | 1.22 in |
| Type | LS-Titan |
| Maximum DC current | 3 A |
| Contact Rating | 6A at 240Vac, 3A at 24Vdc |
| Maximum AC current | 6 A |
| Switch type | Top push plunger |
| Contact configuration | 1 NO-1 NC, snap action, positive opening |
| Operating temperature - max | 158°F |
| Environmental rating | IP66, IP67 |
| Product Height | 2.99 in |
| Product Name | Eaton LS-Titan miniature DIN limit switch |
| Manufacturer Warranty Length | 1 yr |
| Number of Mounting Holes | 2 |
| Mounting Hole Horizontal Center to Center Distance | 20 mm |
| Operating Temperature - Maximum | 158 deg F |
| Overall Width | 1.32 in |
| Mounting Hole Vertical Center to Center Distance | Not Applicable |
| Operating Temperature - Minimum | -13 deg F |
| NEMA Enclosure Rating | 1, 12, 13, 2, 4, 4X, 6 |
| Mounting Hole Diameter | 0.16 in |
| Indicating Light | Not Applicable |
| Compatible with Series | LS-Titan |
| Overall Height | 2.99 in |
| Overall Depth | 1.22 in |
| Package Quantity | 1 |
