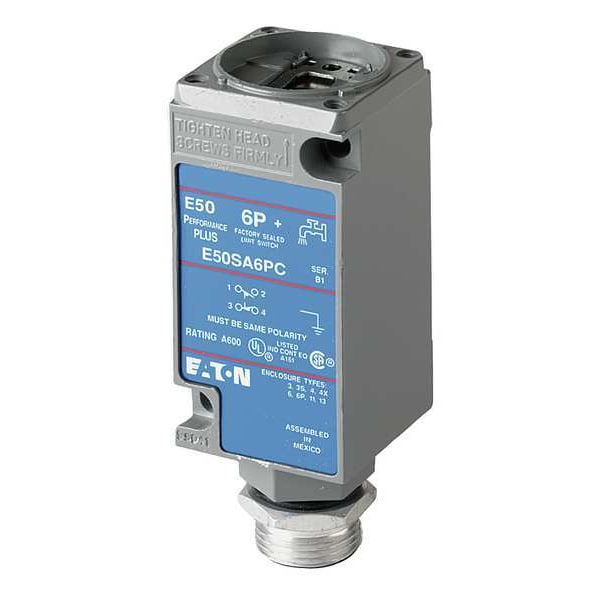

1NC/1NO Cuerpo de interruptor de límite Nema 1, 2, 4, 6, 6P, 12, 13
| Item | Limit Switch Body |
|---|---|
| For Use With | E50 Limit Switch |
| Contact Form | 1NO/1NC |
| AC Contact Rating | 10 A @ 240 V |
| DC Contact Rating | 1 A @ 250 V |
| Electrical Connection | 8 ft Cable with Pre-Terminated 5-Pin Mini Connector |
| NEMA Rating | 1, 12, 13, 2, 4, 6, 6P |
| Standards | CSA, RoHS, UL Listed |
| Operating Temp. | 14 to 221 deg F |
| IP Rating | IP67, IP69K |
| Series | E50 heavy duty factory sealed 6P+ |
| Material | Zinc |
| Contact configuration | 1 NO-1 NC |
| Environmental rating | NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67, IP69K |
| Operating temperature - min | -40°F |
| Number Of Poles | Single-pole |
| Product Length/Depth | 4.24 in |
| Connection | Mini |
| Product Width | 1.54 in |
| Product Height | 2.46 in |
| Enclosure material | Die cast zinc |
| Maximum AC current | 10 A |
| Certifications | UL Recognized |
| Number of pins | 5 |
| Maximum DC current | 1 A |
| Operating temperature - max | 250°F |
| Contact Rating | 10A at 240 Vac, 1A at 250 Vdc |
| Product Name | Eaton E50 NEMA heavy duty plug-in limit switch |
| Number of Mounting Holes | 2 |
| Manufacturer Warranty Length | 1 yr |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Operating Temperature - Maximum | 250 deg F |
| Overall Width | 1.54 in |
| Compatible with Series | E50 |
| Operating Temperature - Minimum | -40 deg F |
| Mounting Hole Diameter | 0.2 in |
| Indicating Light | No Indicating Light Included |
| NEMA Enclosure Rating | 1, 13, 3, 3S, 4, 4X, 6, 6P |
| Body Configuration | Plug-In |
| Overall Height | 2.46 in |
| Overall Depth | 4.24 in |
| Package Quantity | 1 |
