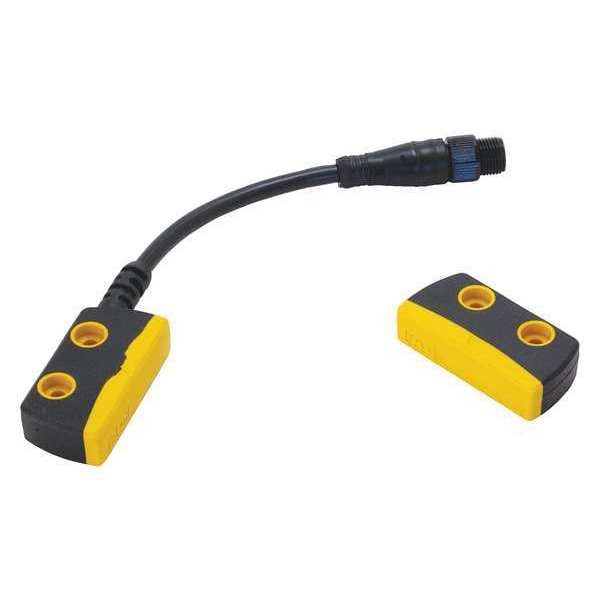

Interruptor de seguridad con actuación magnética de 1NC/1NO.
| Item | Magnetically Actuated Safety Interlock Switch |
|---|---|
| Series | RS |
| AC Contact Rating | Not Applicable |
| DC Contact Rating | 0.3 A @ 24 V |
| Contact Form | 1NO/1NC |
| IP Rating | IP67 |
| Operating Temp. Range | 14 to 131 deg F |
| Description/Special Features | Non-Contact Reed Switch |
| Switch Height | 2.04 in |
| On Sensing Distance | 0.31 in |
| Body Material | Plastic |
| Off Sensing Distance | 3/4 in |
| NEMA Rating | 1, 12, 13 |
| Switch Depth | 0.51 in |
| Switch Dia. | 1.18 in |
| Termination Type | 4-Pin Micro |
| Switch Width | 1.03 in |
| Standards | CE, CSA, EN ISO 13849, IEC 62061, ISO 14119, UL E166051 |
| Cable Length | 0.4 ft |
| Port Location | Bottom Output |
| Cord length | 3 in |
| Enclosure Material | Polyamide |
| Product Width | 0.44 in |
| Environmental rating | IP67, IP69K |
| Contact Rating | 300 mA @ 24 Vdc |
| Compliances | CE Marked |
| Operating temperature - max | 131°F |
| Operating temperature - min | 14°F |
| Certifications | UL Listed |
| Accuracy | < 10% |
| Cable type | Polyvinyl Chloride (PVC) |
| Connection | 4-pin M12 connector |
| Maximum DC current | 300 mA |
| Switch type | Reed Switch |
| Product Length/Depth | 0.94 in |
| Contact configuration | 1 NO-1 NC |
| Product Height | 2 in |
| Type | Switches |
| Product Name | Eaton RS-Titan non-contact door interlock safety switch |
| Operating Temperature - Maximum | 131 deg F |
| Operating Temperature - Minimum | 14 deg F |
| Magnet Actuator Height | 2.04 in |
| Magnet Actuator Width | 1.03 in |
| Magnet Actuator Depth | 0.51 in |
| On Sensing Distance - Maximum | 0.31 in |
| Overall Height | 0.51 in |
| Overall Depth | 2.05 in |
| Indicating Light | No Indicating Light Included |
| Off Sensing Distance - Maximum | 3/4 in |
| NEMA Enclosure Rating | 12, 1, 13 |
| Overall Width | 1.02 in |
| Switch Diameter | Not Applicable |
| Body Style | Rectangular |
| Package Quantity | 1 |
