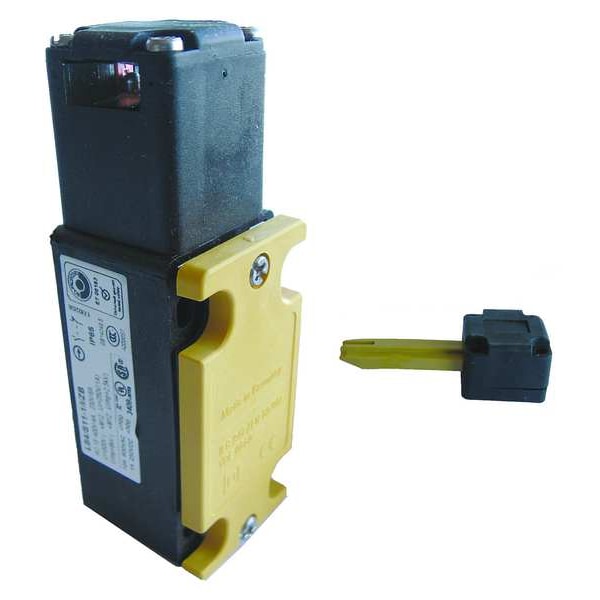

Interruptor de seguridad de seguro 1NC/1NO Nema 1, 12, 13 IP 65.
| Item | Safety Interlock Switch |
|---|---|
| Style | Metal Locking |
| Series | LS-Titan |
| Actuator Length | 1.42 in |
| AC Contact Rating | 6 A @ 230 V |
| DC Contact Rating | 300 A @ 24 V |
| Contact Form | 1NO/1NC |
| Connection Type | Screw |
| Height | 5.37 in |
| Width | 2.36 in |
| Depth | 1.21 in |
| IP Rating | IP65 |
| Operating Temp. Range | -13 to 158 deg F |
| Conduit Size | M20 x 1/2 in |
| Positive Travel | 30 mm |
| Standards | RoHS, UL Listed |
| Differential Travel | 18.5 mm |
| NEMA Rating | 1, 12, 13 |
| Head Material | Metal |
| Body Material | Plastic |
| Movement | Lateral |
| Operating Force | 1,500 N |
| Contact Material | Metal |
| Pre-travel | 15.2mm |
| Description/Special Features | Miniature Din |
| Electrical Connection | Screw Terminals |
| Features | Miniature Din |
| Environmental rating | IP65 |
| Enclosure Material | Plastic |
| Product Width | 1.18 in |
| Maximum DC current | 3 A at 24 Vdc |
| Contact Rating | 6A at 230 Vac, 3A at 24 Vdc |
| Mounting method | Miniature DIN rail |
| Certifications | UL Listed |
| Operating temperature - min | -13°F |
| Operating temperature - max | 158°F |
| Type | LS-Titan |
| Contact configuration | 1 NO-1 NC with positive opening contact |
| Product Height | 1.18 in |
| Connection | Screw terminal |
| Switch type | Cabinet door interlock |
| Product Length/Depth | 3.78 in |
| Maximum AC current | 6 A at 230 Vac |
| Product Name | Eaton LS-Titan miniature DIN limit switch |
| Overtravel | 30 mm |
| Resistance Properties | Shock Resistant |
| NEMA Enclosure Rating | 12, 1, 13 |
| Overall Depth | 3.78 in |
| Overall Height | 1.18 in |
| Actuating Key Type | Flat |
| Includes Actuating Key | Actuating Key Included |
| Key Hole Location | Back, Front, Left, Right |
| Pretravel | 15.2 mm |
| Overall Width | 1.18 in |
| Operating Temperature - Maximum | 158 deg F |
| Actuator Material | Metal |
| Circuitry Action | Snap Action |
| Operating Temperature - Minimum | -13 deg F |
| Package Quantity | 1 |
