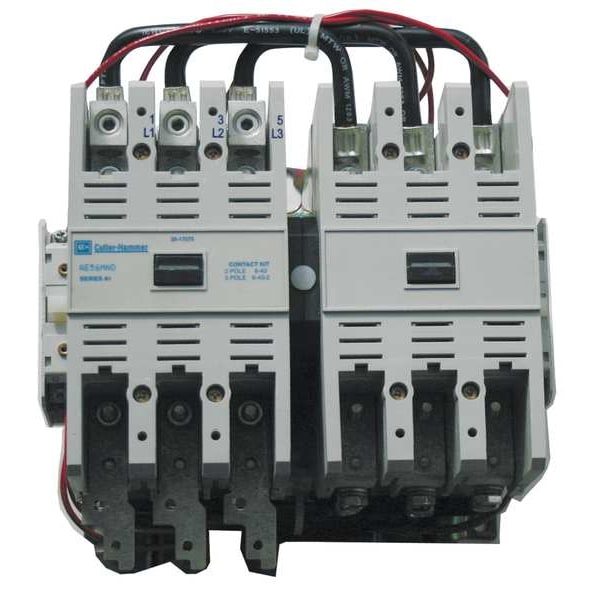

Contactador magnético reversible de 3 polos y 270A, 208VAC NEMA 5.
| Item | Magnetic Contactor |
|---|---|
| Full Load Amps | 270 A |
| Action | Reversing |
| Number of Poles | 3 |
| NEMA Contactor Size | 5 |
| Coil Volts | 208 V AC |
| Reversing | Yes |
| Height | 10-1/2 in |
| Width | 17.7 in |
| HP @ 3 Phase - 208V | 75 hp |
| HP @ 3 Phase - 240V | 100 hp |
| Depth | 25-1/2 in |
| HP @ 3 Phase - 575V | 200 hp |
| HP @ 3 Phase - 480V | 200 hp |
| Enclosure NEMA Rating | No Enclosure |
| Standards | BS, CSA LR353ISO 9000, UL E1491, VDE |
| Auxiliary Contact Form | 1NO/1NC |
| Frame / Series / Class / Code | Series Freedom, Code A, Frame 180mm |
| NEMA Size | 5 |
| Hz | 50/60 |
| Series | Freedom |
| Amperage Rating | 270 A |
| Certifications | CSA Certified |
| Product Width | 7.05 in |
| Size | 5 |
| Product Length/Depth | 7.78 in |
| Product Height | 13.12 in |
| Horsepower | 75 hp at 208 V, 100 hp at 240 V, 200 hp at 480/600 V |
| Phase | Three |
| Overall Depth | 7.78 in |
| Horsepower @ Three Phase - 240V AC | 100 HP |
| Electrical Operating Durability | 3,000,000 |
| Mounting Hole Distance - Height | 6-1/2 in |
| Resistance Properties | Impact Resistant, Temperature Resistant |
| Horsepower @ Three Phase - 600V AC | 200 HP |
| Horsepower @ Three Phase - 208V AC | 75 HP |
| Mounting Hole Diameter | 1/4 in |
| Full Load Current - Inductive | 270 A |
| Mounting Postion | Vertical, Horizontal |
| NEMA Enclosure Rating | No Enclosure |
| Overall Width | 7.05 in |
| Overall Height | 13.12 in |
| Includes Auxiliary Contacts | Yes |
| Mounting Hole Distance - Width | 6 in |
| Frequency | 60 Hz |
| Reversing Capability | Reversing |
| Frame Size | S |
| NEMA Enclosure Material | Not Applicable |
| Mounting Style | Panel Mount |
| Terminal Connection Type | Screw Terminals |
| Contactor Style | NEMA |
| Coil Voltage | 208V AC |
| Embedded Surge Suppressor | No |
| Horsepower @ Three Phase - 480V AC | 200 HP |
| Number of Auxillary Contacts | 2 |
| Package Quantity | 1 |
