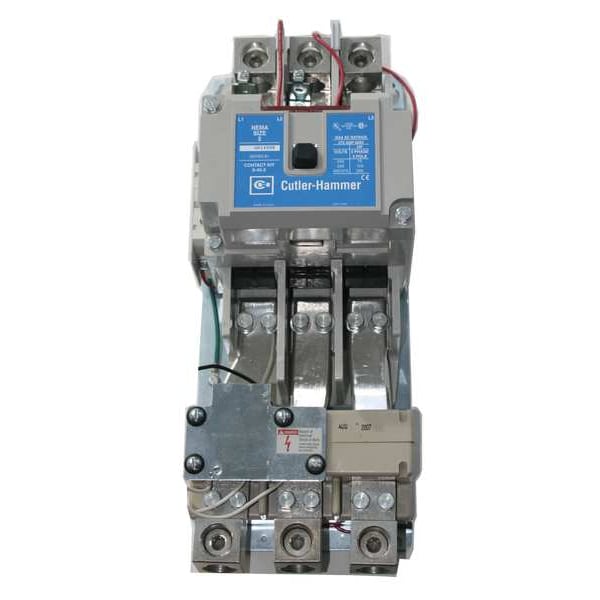

Contactador magnético reversible de 240VAC 3P 135A NEMA 4.
| Item | Magnetic Contactor |
|---|---|
| Full Load Amps | 135 A |
| Action | Reversing |
| Type | Contactor |
| Number of Poles | 3 |
| Coil Volts | 240 V AC |
| NEMA Contactor Size | 4 |
| Reversing | Yes |
| Height | 15.63 in |
| HP @ 3 Phase - 208V | 40 hp |
| Width | 17.1 in |
| HP @ 3 Phase - 575V | 100 hp |
| Depth | 9-1/2 in |
| HP @ 3 Phase - 240V | 50 hp |
| HP @ 3 Phase - 480V | 100 hp |
| Enclosure NEMA Rating | No Enclosure |
| Hz | 50/60 |
| NEMA Size | 4 |
| Standards | CSA, UL Listed |
| Frame / Series / Class / Code | Series Freedom, Code B1, Frame 180mm |
| Auxiliary Contact Form | 1NO/1NC |
| Series | Freedom |
| Size | 4 |
| Product Length/Depth | 7-1/4 in |
| Horsepower | 40 hp at 208 V, 50 hp at 240 V, 100 hp at 480/600 V |
| Product Width | 7.05 in |
| Phase | Three |
| Product Height | 9.11 in |
| Full load current range | 240 V to 60 Hz, 220 V to 50 Hz |
| Amperage Rating | 135 A |
| Certifications | CSA Certified |
| Product Name | Eaton Freedom NEMA motor control contactor |
| Nema Frame Size | NEMA Size 4 |
| Overload Relay | None |
| Coil Voltage | 220/240V AC |
| Overall Height | 9.11 in |
| Mounting Hole Distance - Height | 6-1/2 in |
| NEMA Enclosure Rating | No Enclosure |
| Frame Size | N |
| Contactor Style | NEMA |
| Includes Auxiliary Contacts | Yes |
| Mounting Hole Diameter | 1/4 in |
| Embedded Surge Suppressor | No |
| Overall Depth | 7-1/4 in |
| Horsepower @ Three Phase - 600V AC | 100 HP |
| Frequency | 50/60 Hz |
| Mounting Hole Distance - Width | 6 in |
| Mounting Style | Panel Mount |
| Reversing Capability | Reversing |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Three Phase - 208V AC | 40 HP |
| Horsepower @ Three Phase - 240V AC | 50 HP |
| Horsepower @ Three Phase - 480V AC | 100 HP |
| Full Load Current - Inductive | 135 A |
| Number of Auxillary Contacts | 2 |
| Terminal Connection Type | Screw Terminals |
| Resistance Properties | Impact Resistant, Temperature Resistant |
| Mounting Postion | Vertical, Horizontal |
| Overall Width | 7.05 in |
| Electrical Operating Durability | 3,000,000 |
| Package Quantity | 1 |
