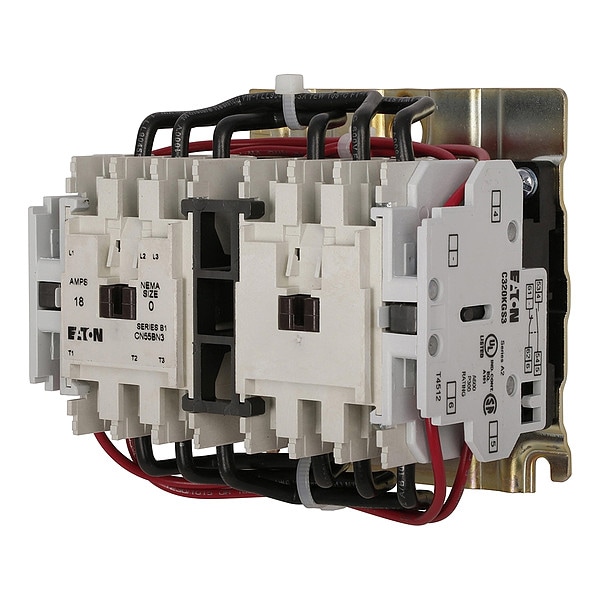

Contacto magnético inversor de 3 polos y 18A NEMA 0 de 240VCA.
| Item | Magnetic Contactor |
|---|---|
| Full Load Amps | 18 A |
| Action | Reversing |
| Number of Poles | 3 |
| NEMA Contactor Size | 0 |
| Coil Volts | 240 V AC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 1 hp |
| HP @ 1 Phase - 240V | 2 hp |
| Height | 5.1 in |
| HP @ 3 Phase - 208V | 3 hp |
| Width | 5.3 in |
| HP @ 3 Phase - 240V | 3 hp |
| Depth | 5.7 in |
| HP @ 3 Phase - 575V | 5 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 5 hp |
| Frame / Series / Class / Code | Series Freedom, Code A, Frame 180mm |
| Hz | 50/60 |
| Standards | CSA, UL Listed |
| NEMA Size | 0 |
| Auxiliary Contact Form | 1NO/1NC |
| Series | Freedom |
| Certifications | UL Listed |
| HP rating - max | 1 hp at 115V, 2 hp at 230V, 3 hp at 208,240V, 5 hp at 480,600V |
| Product Width | 1-3/4 in |
| Size | 0 |
| Product Length/Depth | 3.49 in |
| Amperage Rating | 18 A |
| Phase | Three |
| Product Height | 3.88 in |
| Product Name | Eaton Freedom NEMA motor control contactor |
| Resistance Properties | Impact Resistant, Temperature Resistant |
| Embedded Surge Suppressor | No |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Mounting Hole Distance - Height | 3.38 in |
| Overall Height | 3.88 in |
| Overall Width | 1-3/4 in |
| Terminal Connection Type | Screw Terminals |
| Mounting Hole Diameter | 1/4 in |
| Frame Size | B |
| Number of Auxillary Contacts | 2 |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Mounting Hole Distance - Width | 1-1/2 in |
| Overall Depth | 3.49 in |
| Mounting Postion | Vertical, Horizontal |
| Reversing Capability | Reversing |
| Horsepower @ Three Phase - 600V AC | 5 HP |
| Contactor Style | NEMA |
| Electrical Operating Durability | 3,000,000 |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Full Load Current - Inductive | 18 A |
| NEMA Enclosure Material | Not Applicable |
| Frequency | 50/60 Hz |
| Coil Voltage | 220/240V AC |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Mounting Style | Panel Mount |
| Package Quantity | 1 |
