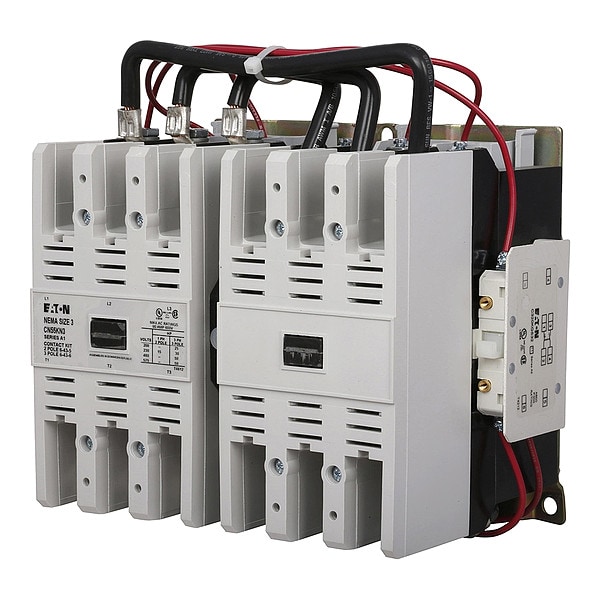

Contactador magnético de inversión de 240VCA 3 polos 90A NEMA 3.
| Item | Magnetic Contactor |
|---|---|
| Action | Reversing |
| Full Load Amps | 90 A |
| Type | Contactor |
| Number of Poles | 3 |
| Coil Volts | 240 V AC |
| NEMA Contactor Size | 3 |
| Reversing | Yes |
| Height | 8.4 in |
| Width | 10.2 in |
| HP @ 3 Phase - 208V | 25 hp |
| Depth | 12.4 in |
| HP @ 3 Phase - 575V | 50 hp |
| HP @ 3 Phase - 240V | 30 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 50 hp |
| NEMA Size | 3 |
| Hz | 50/60 |
| Standards | CSA, UL Listed |
| Frame / Series / Class / Code | Series Freedom, Code A, Frame 180mm |
| Auxiliary Contact Form | 1NO/1NC |
| Series | Freedom |
| Amperage Rating | 90 A |
| Product Length/Depth | 5.94 in |
| Size | 3 |
| Product Width | 4.08 in |
| Product Height | 7.17 in |
| Horsepower | 25 hp at 208 V, 30 hp at 240 V, 50 hp at 480/600 V |
| Phase | Three |
| Certifications | UL Listed |
| Product Name | Eaton Freedom NEMA motor control contactor |
| Overload Relay | None |
| Coil Voltage | 220/240V AC |
| Nema Frame Size | NEMA Size 3 |
| Terminal Connection Type | Screw Terminals |
| Reversing Capability | Reversing |
| Overall Depth | 5.94 in |
| Mounting Postion | Vertical, Horizontal |
| Horsepower @ Three Phase - 240V AC | 25 HP |
| Includes Auxiliary Contacts | Yes |
| Contactor Style | NEMA |
| Mounting Hole Distance - Width | 3 in |
| Mounting Hole Diameter | 1/4 in |
| Embedded Surge Suppressor | No |
| Frequency | 50/60 Hz |
| Frame Size | K |
| Number of Auxillary Contacts | 2 |
| Horsepower @ Three Phase - 480V AC | 50 HP |
| Mounting Hole Distance - Height | 6.63 in |
| Overall Width | 4.08 in |
| Electrical Operating Durability | 3,000,000 |
| Overall Height | 7.17 in |
| Horsepower @ Three Phase - 208V AC | 25 HP |
| Full Load Current - Inductive | 90 A |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Style | Panel Mount |
| NEMA Enclosure Material | Not Applicable |
| Resistance Properties | Impact Resistant, Temperature Resistant |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Package Quantity | 1 |
