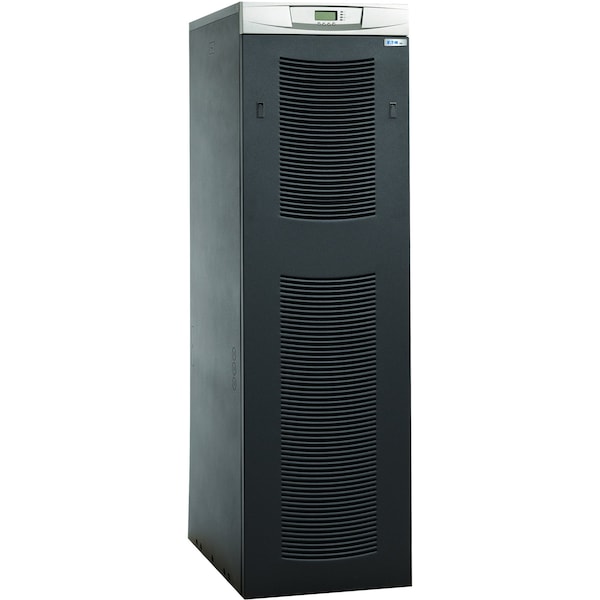

9355 30 Kva With Interna, KB3013200000010
| Item | UPS System |
|---|---|
| Power Rating | 30 kVA |
| Height | 66 in |
| Battery Type | Sealed, lead-acid, maintenance-free |
| Width | 34.1 in |
| Input Power Factor | P.F >0.99 typical, >0.96 frequency converter |
| User interface | LCD Display with blue backlight |
| Battery Quantity | 108 |
| Input Frequency Range | 45-65 Hz |
| Software Compatibility | Bundled Software Suite CD |
| Extended Battery Capability | Yes, via EBM |
| Package Contents | 1 ready-to-go UPS; Software Suite CD; User Guide |
| Phase (Input) | 127/220 VAC |
| Expansion Slots | (2) X-Slot communication bays |
| Ethernet Interface | Yes, via Gateway card |
| Output Frequency | 50/60 Hz |
| Output Voltage Range | ±1% static;±5% dynamic at 100% resistive load change, <1 ms response time |
| Efficiency | 91%, typical |
| Enclosure | Nema 1 |
| Nominal Frequency | 75/130-144/249 VAC, phase |
| Battery Rating | 9 Ah |
| Communication | (1) RS-232, (1) relay contact, (1) REPO, (2) environmental input |
| Output Waveform | Sine Wave |
| Package Quantity | 1 |
