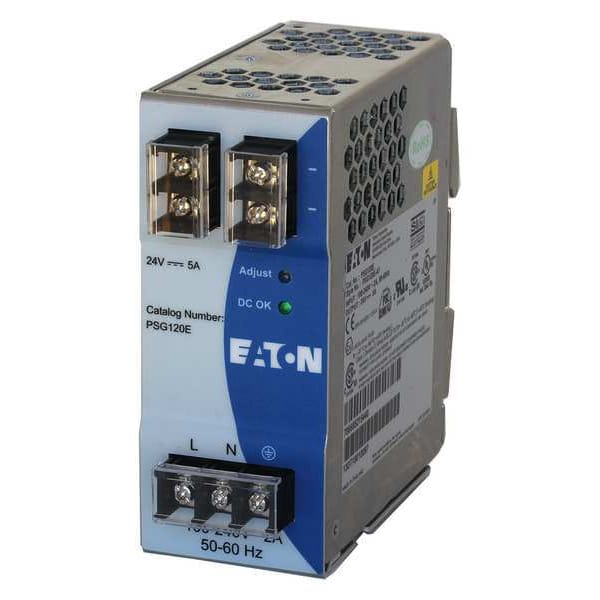

AC to DC Power Supply, 100/240V AC, 24V DC, 120W, 5A, DIN Rail
| Item | AC to DC Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Voltage | 24V DC |
| Power Rating | 120 W |
| Output Amps | 5 A |
| Mounting | DIN Rail |
| Case Material | Aluminum Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 4.72 in |
| Width | 1.26 in |
| Depth | 4.76 in |
| Hz | 50/60 Hz |
| IP Rating | IP20 |
| Peak Amps | 7.5 |
| Status Indicator | LED/DC OK Signal |
| Series | PSG |
| Hold Up Time | Greater than 22 msec |
| Output Noise | Less than 50 mV |
| Operating Temp. Range | -20 to 80 deg C |
| Standards | CE, CSA, cUL, cULus/UL 60950-1, EN, German Safety, IEC, RoHS, UL 508 |
| Features | Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint |
| Connection | Screw |
| Special Features | Varistor Transient Surge Voltage |
| Terminals | Heavy-duty screw |
| Certifications | UL 508;cULus/UL 60950-1;CSA Certified;IEC Rated;cUL Certified;EN Listed |
| Rated Operational Current | 7.5 A surge;Less than 80 A inrush;5 A output;1.4 A input |
| Frequency Rating | 47-63 Hz |
| Compliances | German Safety;CE Marked |
| Current - Peak | 7.5 A |
| NEMA Enclosure Rating | 1 |
| Operating Temperature - Minimum | -4 deg F |
| Output Power - Rated | 120 W |
| Current - Output | 5 A |
| Current - Inrush | 80 A |
| Housing Material | Aluminum |
| Manufacturer Warranty | 1 yr Installation, 18 mo Shipment |
| Wire Connection Type | Terminals |
| Operating Temperature - Maximum | 167 deg F |
| Package Quantity | 1 |
