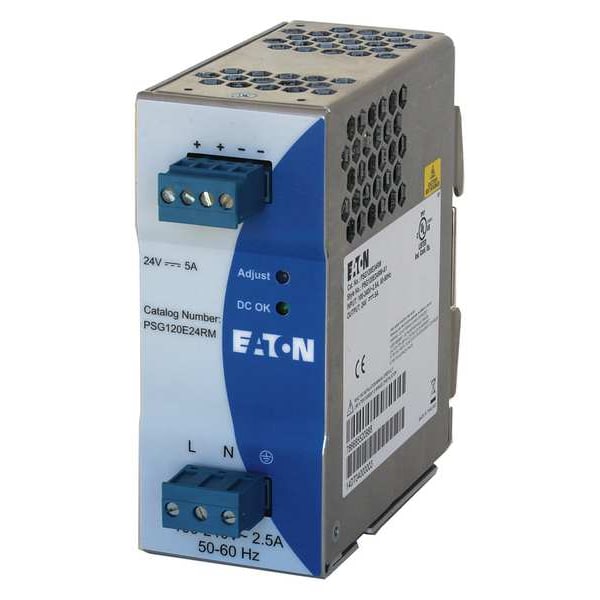

AC to DC Power Supply, 100/240V AC, 24V DC, 120W, 5A, DIN Rail
| Item | AC to DC Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Voltage | 24V DC |
| Power Rating | 120 W |
| Output Amps | 5 A |
| Mounting | DIN Rail |
| Case Material | Aluminum Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 4.84 in |
| Width | 1.97 in |
| Depth | 4.76 in |
| Hz | 50/60 Hz |
| IP Rating | IP20 |
| Status Indicator | LED/DC OK Signal |
| Peak Amps | 7.5 |
| Series | PSG |
| Standards | CE, CSA, cUL, cULus/UL 60950-1, EN, German Safety, IEC, RoHS, UL 508 |
| Operating Temp. Range | -20 to 80 deg C |
| Hold Up Time | Greater than 22 msec |
| Features | Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint |
| Output Noise | Less than 50 mV |
| Certifications | cUL Certified;CSA Certified;IEC Rated;UL 508;cULus/UL 60950-1;EN Listed |
| Terminals | Removable |
| Special Features | Varistor Transient Surge Voltage |
| Compliances | CE Marked;German Safety |
| Maximum Efficiency @ 230V AC | 90% |
| Current - Inrush | 35 A |
| Housing Material | Metal |
| Current - Peak | 7.5 A |
| NEMA Enclosure Rating | 1 |
| Wire Size - Minimum | 20 AWG |
| Operating Temperature - Maximum | 167 deg F |
| Input Frequency - Nominal | 50/60 Hz |
| Manufacturer Warranty | 1 yr Installation, 18 mo Shipment |
| Output Power - Rated | 120 W |
| Wire Size - Maximum | 12 AWG |
| Maximum Efficiency @ 115V AC | 89% |
| Current - Output | 5 A |
| Mean Time Between Failures (MTBF) | 800,000 hr |
| Operating Temperature - Minimum | -4 deg F |
| Package Quantity | 1 |
