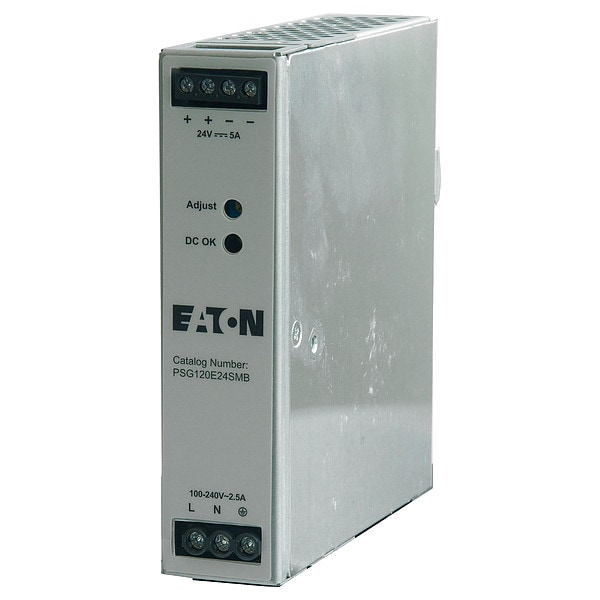

AC to DC Power Supply, 100/240V AC, 24V DC, 120W, 5A, DIN Rail
| Item | AC to DC Power Supply |
|---|---|
| Input Voltage | 100/240V AC |
| Output Voltage | 24V DC |
| Power Rating | 120 W |
| Output Amps | 5 A |
| Mounting | DIN Rail |
| Case Material | Aluminum Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 12.37 cm |
| Width | 3 m |
| Depth | 11.68 m |
| Hz | 50/60 Hz |
| Series | PSG |
| IP Rating | IP20 |
| Status Indicator | Red LED |
| Standards | CE, cUL, cULus/UL 60950-1, EN, IEC, RoHS Compliant |
| Compliances | CE Marked;German Safety |
| Certifications | EN Listed; cULus/UL 60950-1; IEC Rated; cUL Recognized |
| Operating Temperature - Maximum | 176 deg F |
| Mean Time Between Failures (MTBF) | 7,000,000 hr |
| Manufacturer Warranty | 3 yr |
| Operating Temperature - Minimum | -13 deg F |
| Start Up Time - Maximum | 500 msec |
| Wire Connection Type | Terminals |
| Housing Material | Metal |
| Current - Output | 5 A |
| Output Power - Rated | 120 W |
| Maximum Efficiency @ 230V AC | 88.5% |
| Current - Inrush | 35 A |
| Package Quantity | 1 |
