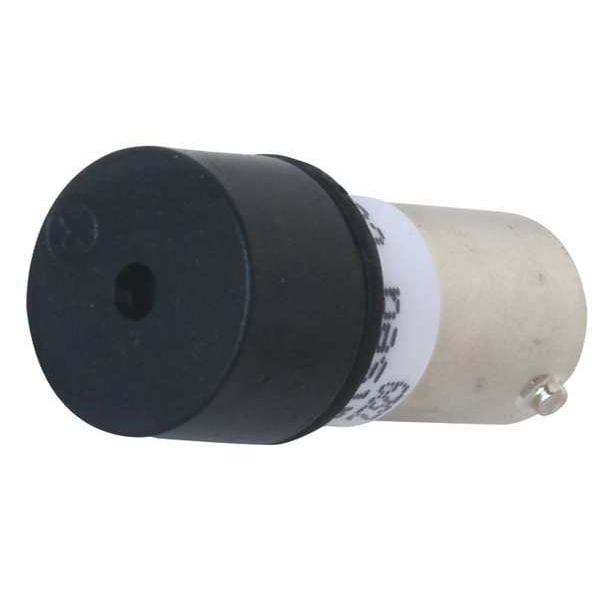

Tono de pulso acústico, 22mm, negro.
| Size | 22 mm |
|---|---|
| Item | Annunciator |
| For Use With | M22 Push Buttons |
| Legend | Not Applicable |
| Features | Global Acceptance, Flexible, Modular Construction, Space-Saving Design, Stackable Contact Blocks |
| Color | Black |
| Action | Not Applicable |
| Standards | Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register |
| NEMA Rating | 12, 13, 3R, 4X |
| Key Removal | No Key |
| IP Rating | IP69K, IP67 |
| Type of Operator | Annunciator |
| Bezel Material | Plastic |
| Basic Material | Plastic |
| Product Type | Annunciator |
| Terminal Connection | Spring Cage |
| Lamp Module Type | Not Applicable |
| Type | Indicator, pulsed tone |
| Head Material | Plastic |
| Bezel | Black |
| Lamp Type | Not Applicable |
| Number of Operators | 1 |
| Certifications | CCC Marked |
| Decibel | 83 dB/ 10 cm |
| Compliances | Bureau Veritas |
| Product Width | 1 in |
| Product Length/Depth | 0.03 in |
| Series | M22 |
| Environmental rating | IP40 |
| Voltage rating | 18-30 Vac/dc |
| Product Height | 2 in |
| Product Name | Eaton M22 pushbutton acoustic indicator |
| Operating Temperature - Minimum | -13 deg F |
| Legend Color | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Operator Material | Plastic |
| Number of Indicator Lights | 0 |
| Overall Depth | 0.03 in |
| Overall Height | 2 in |
| Operating Temperature - Maximum | 158 deg F |
| Manufacturer Warranty Length | 1 yr |
| Operator Illumination | Non-Illuminated |
| Overall Width | 1 in |
| Lamp Voltage - Maximum | Not Applicable |
| Legend Background Color | Not Applicable |
| NEMA Enclosure Rating | 4X, 13 |
| Head Color | Black |
| Hazardous Location Specification | Not Rated |
| Panel Cutout Diameter | 22 mm |
| Package Quantity | 1 |
