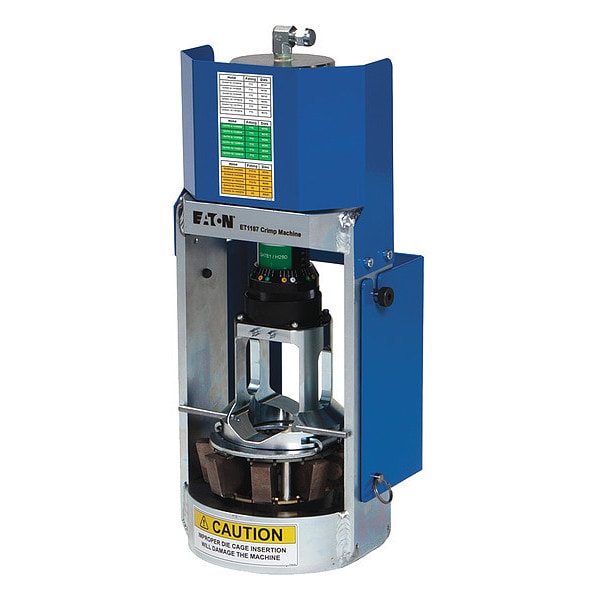

Hydraulic Hose Crimping Machine
| Primary Application - Crimping | Hydraulic Hose Crimping |
|---|---|
| Item | Hydraulic Hose Crimping Machine |
| Max. Crimping Force - Crimper | 10 ton |
| Depth | 11 in |
| Height | 22 in |
| Crimping Force | 10 ton |
| Width | 9 in |
| Tool Length | 8 in |
| Hydraulic Hose Capacity - Crimper | Up to 1-1/4 in Hose |
| Mounting Type | Portable |
| Power Source | Manual |
| Tool Weight | 70 lb |
| Voltage | Not Applicable |
| Oil Capacity (Cu.-In.) | 36 |
| Input Required - Hydraulic Hose Crimping | 10,000 psi Hydraulic |
| Working Hydraulic Pressure - Crimping | 10,000 psi |
| Compatible With - Hose Crimping | Aeroquip Hose and Fittings |
| Mounting - Hose Crimper | Portable |
| Type of Pump - Hydraulic Crimping | No Pump, External Hydraulic Pressure |
| Product Type | Crimping Machine |
| Minimum Hose Crimping Size | 1-1/4 in |
| Maximum Operating Pressure | 10,000 psi |
| Tool Width | 9-1/2 in |
| Hydraulic Hose Type Compatibility | 1 to 2 Wire, 4 Spiral |
| Tool Series | ET1187 |
| Oil Capacity | 36 cu in |
| Maximum Hose Crimping Size | 1 1/4 in |
| Tool Height | 20 in |
| Pump Type | External |
| Package Quantity | 1 |
