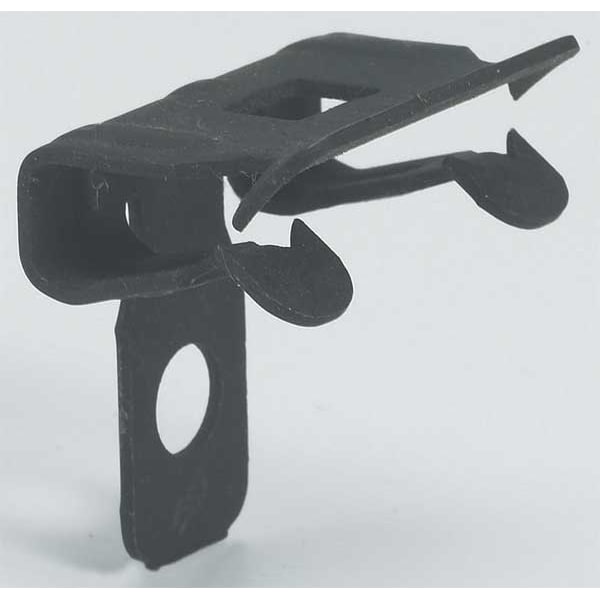

Flange Clip, Steel, Zinc Phosphate
| Item | Flange Clip |
|---|---|
| For Use With | Bulb Tees and Beams |
| Standards | UL/cUL |
| Sub-Category | Clips |
| Flange Thickness | 5/16 in to 1/2 in |
| Nominal Conduit/Pipe | 1/4 in |
| Finish | Zinc Phosphate |
| Mounting Type | Hammer On |
| Description/Special Features | 1/4 in Hole |
| Material | Steel |
| Nominal Conduit/Pipe/Threaded Rod | 1/4 in |
| Hole Size | 1/4 in |
| Type | Flange beam fasteners |
| Overall Length | 1 in |
| Number of Pieces | 1 |
| Beam Flange Thickness | 5/16 in to 1/2 in |
| Overall Width | 1 in |
| Compatible Conduit Type | Conduit |
| Compatible Product Type | Pipe |
| Series | B-Line |
| Weight | 0.035 lb |
| Mounting Style | Hammer On |
| Load Capacity | 200 lb |
| Overall Height | 1 in |
| Compatible Pipe Size | 1/4 in |
| Mounting dimensions - max | 0.5 |
| Product Length/Depth | 1 in |
| Mounting dimensions - min | 0.31 |
| Product Height | 1 in |
| Application | Permits fast, easy installation on bulb tees-beams |
| Mounting method | Flange |
| Certifications | CUL, UL, listed |
| Product Width | 1 in |
| PRODUCT NAME | Eaton fasteners, B-Line series fasteners |
| PRODUCT CATEGORY | Beams |
| PRODUCT WEIGHT | 0.035 lb |
| Package Quantity | 1 |
